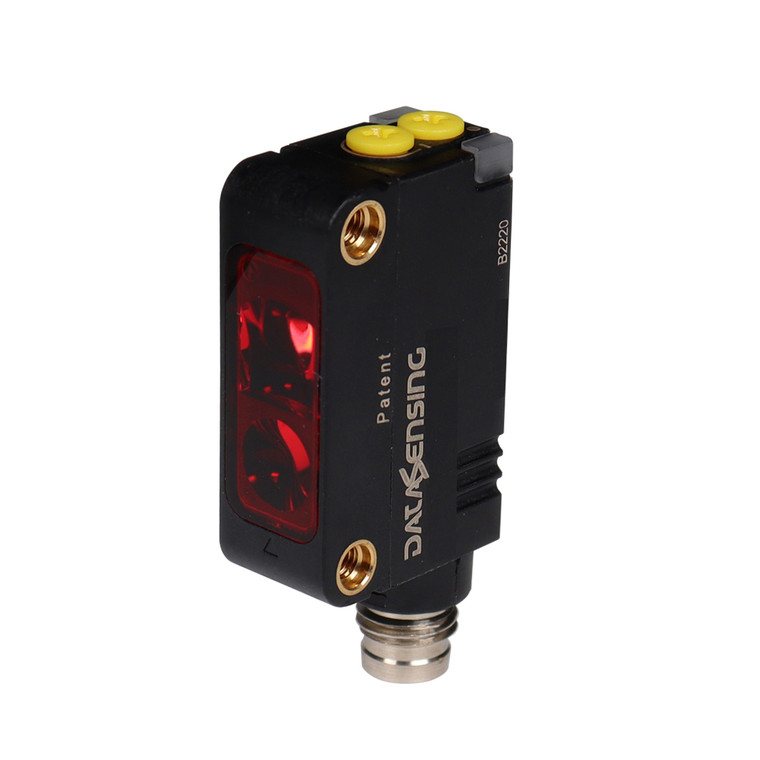

Datasensing Red Laser emission Retro Reflex polarized double trimmer Adj + L/D PNP Connector M8 4P
Datasensing
$113.90
The Datasensing Red Laser Emission Retro Reflex Polarized Double Trimmer is a high-performance sensor designed for precise object detection. Featuring a bright red laser emission, this model offers a nominal sensing distance of 12 meters and a minimum sensing distance of 0.1 meters, making it ideal for applications requiring long-range detection. The sensor is equipped with a polarized retroreflective function and a 1-turn trimmer for sensitivity adjustment, allowing for customizable performance.
This sensor is housed in a rugged IP67 plastic miniature case with M3 threaded holes and metal inserts, ensuring durability and ease of installation. It supports state-of-the-art IO-Link connectivity with extended Smart Tasks, providing advanced communication capabilities. The device operates on a voltage range of 10 to 30 VDC, with a no-load supply current of ? 35mA and a load current of ? 100mA.
The sensor is equipped with LED indicators for output and power status, and it includes short-circuit and reverse polarity protection for enhanced reliability. It is designed to withstand shocks and vibrations, with EMC compatibility according to EN 60947-5-2 standards. The active head is made of PMMA, and the housing is constructed from a plastic polymer fiber glass reinforced material, ensuring robust performance in various environments.
With a compact cubic design measuring 11x31x19 mm, this sensor is suitable for a wide range of industrial applications, offering reliable and accurate detection of shiny and clear objects. The M8 plug 4-pin connection ensures secure and efficient connectivity, making it a versatile choice for modern automation systems.
- Nominal sensing distance:
- 12m
- Sensitivity adjustment:
- 1 turn trimmer
- Minimum sensing distance (blind zone):
- 0,1m
- Function Principle:
- Polarized retroreflective
- Notes:
- On R7 reflector (class 1 LASER)
- Optic position:
- Radial 90°
- Functions:
- Polarized retroreflective
- Output type:
- PNP L/D selectable by trimmer L/D Selectable
- Output Function:
- L/D Selectable
- Switching frequency:
- 2kHz
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 35mA
- Load current:
- ?100mA
- Leakage current:
- ? 300 ?A
- Output voltage drop:
- ?2V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- yellow OUTPUT LED, green POWER ON LED
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Emission:
- LASER Red (650nm) class1
- Interference to external light:
- according to EN 60947-5-2 : 2020
- Impulsive Overvoltage Protection:
- Yes
- Insulation resistance:
- >20 M? 500 Vdc, between electronics and housing
- Contact resistance:
- 500 Vac 1 min., between electronics and housing
- 0,1µF @Vmax - 1µF @Vmin:
- Yes
- Housing Material:
- Plastic Polymer Fiber Glass reinforced
- Connections:
- M8 plug 4pin
- Active Head Material:
- PMMA
- Storage temperature:
- - 25°C +70°C
- Plug connector material:
- Metal
- shaft material:
- POM, PMMA
- Diameter/Dimension:
- Cubic
- Approvals:
- CE cULus CDRH 1
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- 0.5 mm amplitude, 10 55 Hz frequency, for every axis (EN60068-2-6)
- Dimensions:
- 11x31x19 mm
- Operating Temperature:
- -25°C ... 55°C
- Mechanical Protection:
- IP67
