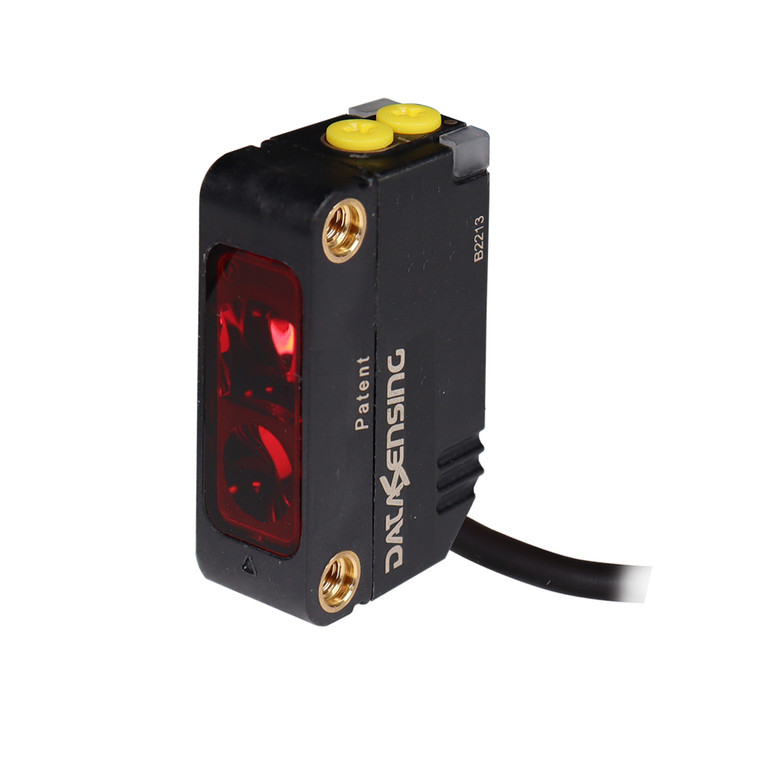

Datasensing Red LED emission Background Suppressor double trimmer Adj + L/D NPN Cable

The Datasensing Red LED Emission Background Suppressor is a versatile and advanced sensor designed for precise object detection and background suppression. Featuring a bright red LED emission, this sensor is equipped with multiple background suppression functions, making it ideal for detecting shiny and clear objects. It offers a diffuse proximity range of up to 100 cm and background suppression up to 800 mm with the LED trimmer version. The sensor also supports polarized RRX up to 7 m and through-beam detection up to 20 m, with a rugged IP67 plastic miniature case ensuring durability in various environments. This model includes a single, double trimmer, and push button options, with a nominal sensing distance of 800 mm and a sensitivity adjustment via a 1-turn trimmer. It operates on a voltage range of 10 to 30 VDC, with a switching frequency of 500 Hz and a response time of 1 ms. The sensor is equipped with state-of-the-art IO-Link connectivity, offering extended smart tasks for enhanced functionality. The device is designed with a radial 90° optic position and features an NPN L/D selectable output type. It includes short-circuit and reverse polarity protection, ensuring reliable performance. The housing is made from plastic polymer fiber glass reinforced material, with an active head material of PMMA, providing robust mechanical protection. The sensor is compatible with CE cULus approvals and meets EMC compatibility standards according to EN 60947-5-2. With a compact dimension of 11x31x19 mm, it is suitable for a wide range of industrial applications.
