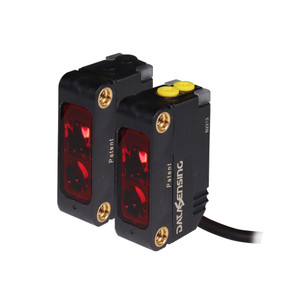

Datasensing Red LED emission Through Beam Transmitter and receiver double trimmer Adj + L/D NPN Cable
Datasensing
$118.60
The Datasensing Red LED Emission Through Beam Transmitter and Receiver is a high-performance sensor designed for precise object detection and background suppression. Featuring a visible and bright red LED emission, this model offers multiple background suppression functions and is capable of detecting shiny and clear objects with ease. It includes single and double trimmer adjustments, as well as push button models for versatile application. The sensor provides diffuse proximity detection up to 100 cm and background suppression up to 800 mm with the LED trimmer version. It boasts a polarized RRX range of 7 m for red LED emission and 12 m for red laser emission, with through-beam capabilities reaching 20 m and laser up to 30 m.
The device is housed in a rugged IP67 plastic miniature case with M3 threaded holes on the front side, reinforced with metal inserts for durability. It offers state-of-the-art IO-Link connectivity with extended Smart Tasks, ensuring seamless integration into various systems. The sensor operates on a nominal sensing distance of 20 m, with a sensitivity adjustment via a 1-turn trimmer. It features a radial 90° optic position and selectable NPN L/D output type, with a switching frequency of 500Hz and a rapid response time of 1ms.
Designed for reliability, the sensor includes short-circuit and reverse polarity protection, impulsive overvoltage protection, and is resistant to external light interference as per EN 60947-5-2: 2020 standards. It operates within a voltage range of 10
30VDC, with a no-load supply current of ? 35mA and a load current of ?100mA. The housing is made from plastic polymer fiber glass reinforced material, with a PMMA active head and a 2m cable connection. The device is CE cULus approved, EMC compatible, and withstands shocks and vibrations according to EN60068-2-6 standards. With dimensions of 11x31x19 mm, it operates efficiently in temperatures ranging from -25°C to 55°C, making it suitable for a wide range of industrial applications.
- Nominal sensing distance:
- 20m
- Sensitivity adjustment:
- 1 turn trimmer
- Minimum sensing distance (blind zone):
- 0
- Function Principle:
- Through beam emitter and receiver
- Optic position:
- Radial 90°
- Functions:
- Through beam emitter and receiver
- Output type:
- NPN L/D Selectable
- Output Function:
- L/D Selectable
- Switching frequency:
- 500Hz
- Response time:
- 1ms
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 35mA
- Load current:
- ?100mA
- Leakage current:
- ? 300 ?A
- Output voltage drop:
- ?2V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- yellow OUTPUT LED, green STABILITY LED
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Emission:
- LED Red (635nm)
- Interference to external light:
- according to EN 60947-5-2 : 2020
- Impulsive Overvoltage Protection:
- Yes
- Insulation resistance:
- >20 M? 500 Vdc, between electronics and housing
- Contact resistance:
- 500 Vac 1 min., between electronics and housing
- 0,1µF @Vmax - 1µF @Vmin:
- Yes
- Housing Material:
- Plastic Polymer Fiber Glass reinforced
- Connections:
- 2m cable
- Active Head Material:
- PMMA
- Storage temperature:
- - 25°C +70°C
- Plug connector material:
- Metal
- shaft material:
- POM, PMMA
- Diameter/Dimension:
- Cubic
- Approvals:
- CE cULus
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- 0.5 mm amplitude, 10 55 Hz frequency, for every axis (EN60068-2-6)
- Dimensions:
- 11x31x19 mm
- Operating Temperature:
- -25°C ... 55°C
- Mechanical Protection:
- IP67
