Datasensing Red LED emission Through Beam Transmitter and receiver double trimmer Adj + L/D PNP Cable
Datasensing
$118.60

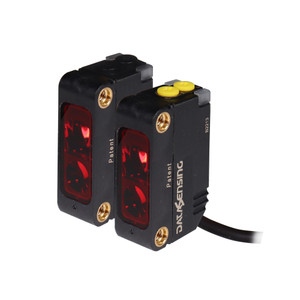

The Datasensing Red LED Emission Through Beam Transmitter and Receiver is a high-performance sensor designed for precise object detection. Featuring a bright red LED emission, this device offers multiple background suppression functions, making it ideal for detecting shiny and clear objects. It supports a nominal sensing distance of up to 20 meters and includes a double trimmer for sensitivity adjustment, allowing for fine-tuning to suit various applications. The sensor operates on a through-beam principle with a radial 90° optic position, providing reliable performance with a switching frequency of 500Hz and a rapid response time of 1ms.
This model is equipped with a PNP output type, selectable by trimmer for light/dark operation, and includes essential protections such as short-circuit and reverse polarity protection. The rugged IP67-rated plastic miniature case ensures durability in harsh environments, while the state-of-the-art IO-Link connectivity offers extended smart tasks for advanced automation solutions. The device is housed in a compact cubic design with dimensions of 11x31x19 mm, and it operates efficiently within a temperature range of -25°C to 55°C. With CE and cULus approvals, this sensor is a reliable choice for industrial applications requiring precise and adaptable sensing capabilities.
- Nominal sensing distance:
- 20m
- Sensitivity adjustment:
- 1 turn trimmer
- Minimum sensing distance (blind zone):
- 0
- Function Principle:
- Through beam emitter and receiver
- Optic position:
- Radial 90°
- Functions:
- Through beam emitter and receiver
- Output type:
- PNP L/D selectable by trimmer L/D Selectable
- Output Function:
- L/D Selectable
- Switching frequency:
- 500Hz
- Response time:
- 1ms
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 35mA
- Load current:
- ?100mA
- Leakage current:
- ? 300 ?A
- Output voltage drop:
- ?2V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- yellow OUTPUT LED, green STABILITY LED
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Emission:
- LED Red (635nm)
- Interference to external light:
- according to EN 60947-5-2 : 2020
- Impulsive Overvoltage Protection:
- Yes
- Insulation resistance:
- >20 M? 500 Vdc, between electronics and housing
- Contact resistance:
- 500 Vac 1 min., between electronics and housing
- 0,1µF @Vmax - 1µF @Vmin:
- Yes
- Housing Material:
- Plastic Polymer Fiber Glass reinforced
- Connections:
- 2m cable
- Active Head Material:
- PMMA
- Storage temperature:
- - 25°C +70°C
- Plug connector material:
- Metal
- shaft material:
- POM, PMMA
- Diameter/Dimension:
- Cubic
- Approvals:
- CE cULus
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- 0.5 mm amplitude, 10 55 Hz frequency, for every axis (EN60068-2-6)
- Dimensions:
- 11x31x19 mm
- Operating Temperature:
- -25°C ... 55°C
- Mechanical Protection:
- IP67
