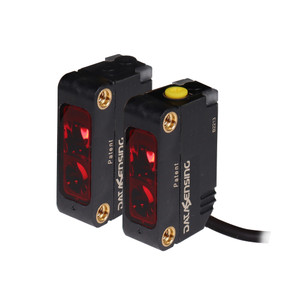

Datasensing Red LED emission Through Beam Transmitter and receiver single trimmer Dark Output NPN Cable

The Datasensing Red LED Emission Through Beam Transmitter and Receiver is a high-performance sensor designed for precise object detection. Featuring a visible and bright red LED emission, this model offers multiple background suppression functions, making it ideal for detecting shiny and clear objects. It supports a nominal sensing distance of 20 meters with a sensitivity adjustment via a single turn trimmer, ensuring accurate performance in various applications. This sensor operates on a through-beam principle with a radial 90° optic position, providing reliable detection with an NPN dark output. It boasts a fast switching frequency of 500Hz and a quick response time of 1ms, suitable for high-speed operations. The device operates within a voltage range of 10 to 30VDC, with a low no-load supply current of ? 35mA and a load current of ?100mA. Built with a rugged IP67 plastic miniature case, the sensor is designed to withstand harsh environments. It includes short-circuit and reverse polarity protection, ensuring durability and safety. The housing is made from plastic polymer fiber glass reinforced material, with an active head made of PMMA, providing robust construction. The sensor is equipped with LED indicators for output and stability, enhancing user convenience. It features a 2-meter cable connection and is compatible with state-of-the-art IO-Link connectivity, offering extended smart tasks for advanced applications. With approvals from CE and cULus, and EMC compatibility with EN 60947-5-2, this sensor meets high industry standards for quality and performance.
