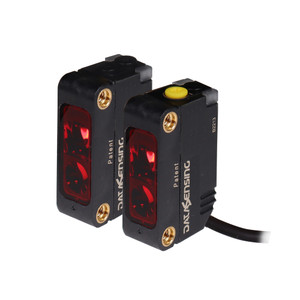

Datasensing Red LED emission Through Beam Transmitter and receiversingle trimmer Light Output PNP Cable
Datasensing
$104.70
The Datasensing Red LED Emission Through Beam Transmitter and Receiver is a high-performance sensor designed for precise object detection and background suppression. Featuring a visible and bright red LED emission, this model offers multiple background suppression functions and is capable of detecting shiny and clear objects with ease. It supports single and double trimmer adjustments, as well as push button models, providing flexibility in various applications. The sensor boasts a diffuse proximity range of up to 100 cm and background suppression up to 800 mm for the LED trimmer version. With a polarized RRX range of 7 m for red LED emission and 12 m for red laser emission, it ensures reliable performance in diverse environments. The through-beam capability extends up to 20 m, while the laser version reaches 30 m, making it suitable for long-distance sensing tasks.
The device is housed in a rugged IP67 plastic miniature case with M3 threaded holes and metal inserts for secure mounting. It features state-of-the-art IO-Link connectivity with extended Smart Tasks, enhancing its integration into modern automation systems. The sensor operates on a voltage range of 10 to 30 VDC, with a nominal sensing distance of 20 m and a sensitivity adjustment via a 1-turn trimmer. It offers a high switching frequency of 500 Hz and a rapid response time of 1 ms, ensuring quick and accurate detection.
Equipped with yellow output and green stability LED indicators, the sensor provides clear visual feedback on its operational status. It includes short-circuit and reverse polarity protection, as well as impulsive overvoltage protection, ensuring reliable and safe operation. The housing is made from plastic polymer fiber glass reinforced material, with an active head of PMMA, ensuring durability and resistance to environmental factors. The sensor is compatible with EN 60947-5-2 standards for interference to external light and EMC compatibility, and it is approved by CE and cULus. With a compact cubic design measuring 11x31x19 mm, it is suitable for installation in tight spaces. The operating temperature range is -25°C to 55°C, with a storage temperature range of -25°C to 70°C, making it versatile for various industrial applications.
- Nominal sensing distance:
- 20m
- Sensitivity adjustment:
- 1 turn trimmer
- Minimum sensing distance (blind zone):
- 0
- Function Principle:
- Through beam emitter and receiver
- Optic position:
- Radial 90°
- Functions:
- Through beam emitter and receiver
- Output type:
- PNP Lon
- Output Function:
- Lon
- Switching frequency:
- 500Hz
- Response time:
- 1ms
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 35mA
- Load current:
- ?100mA
- Leakage current:
- ? 300 ?A
- Output voltage drop:
- ?2V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- yellow OUTPUT LED, green STABILITY LED
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Emission:
- LED Red (635nm)
- Interference to external light:
- according to EN 60947-5-2 : 2020
- Impulsive Overvoltage Protection:
- Yes
- Insulation resistance:
- >20 M? 500 Vdc, between electronics and housing
- Contact resistance:
- 500 Vac 1 min., between electronics and housing
- 0,1µF @Vmax - 1µF @Vmin:
- Yes
- Housing Material:
- Plastic Polymer Fiber Glass reinforced
- Connections:
- 2m cable
- Active Head Material:
- PMMA
- Storage temperature:
- - 25°C +70°C
- Plug connector material:
- Metal
- shaft material:
- POM, PMMA
- Diameter/Dimension:
- Cubic
- Approvals:
- CE cULus
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- 0.5 mm amplitude, 10 55 Hz frequency, for every axis (EN60068-2-6)
- Dimensions:
- 11x31x19 mm
- Operating Temperature:
- -25°C ... 55°C
- Mechanical Protection:
- IP67
- 2D Files:
- View
- CAD Files:
- View
- Catalog:
- View
- User Manuals:
- View
