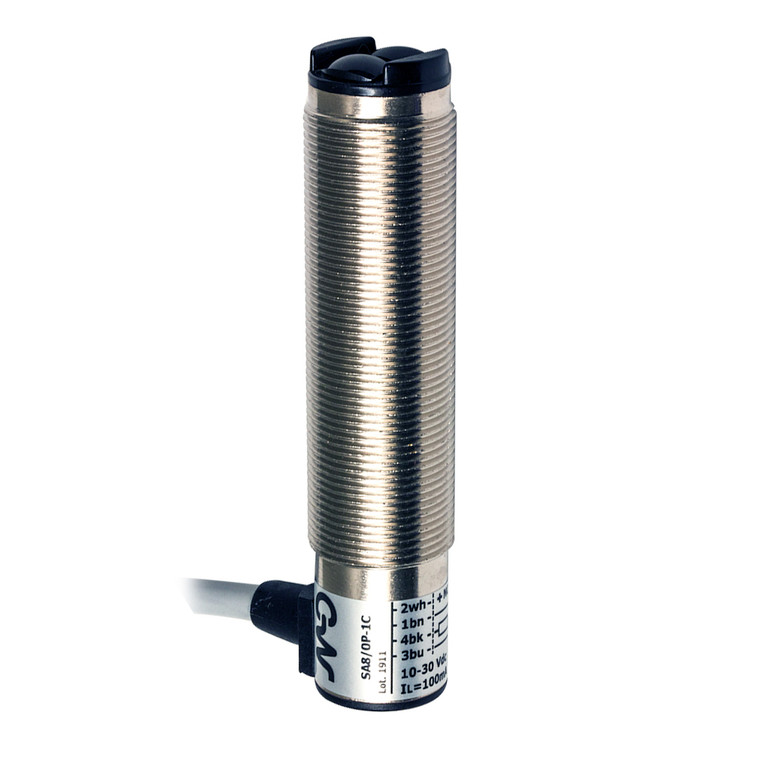

Datasensing SAC/0P-1C Sensors
Datasensing
$146.02
The Datasensing SAC/0P-1C Sensors are advanced photoelectric sensors designed for reliable and precise detection. Featuring a retroreflective function with a nominal sensing distance of 6 meters, these sensors are equipped with a PNP output and a 2-meter metal cable with a 90° exit. The sensors offer a wide range of models including diffuse, retro-reflective, polarized, and fixed-focus, all with sensitivity adjustment via a trimmer for optimal performance.
Key features include a double LED indicator for ON/OFF and supply status, NO/NC selectable output, and IP65 protection for durability in various environments. The sensors are engineered with complete protection against electrical damage, including short-circuit and reverse polarity protection. They operate efficiently with a switching frequency of 1kHz and a response time of 500µs, ensuring quick and accurate detection.
Constructed with a robust nickel-plated brass housing and a PMMA active head, the sensors are designed to withstand harsh conditions with an operating temperature range of -25°C to +70°C. The sensors are EMC compatible and meet the EN 60947-5-2 standard, ensuring reliable performance in environments with high levels of electrical interference.
With a compact design measuring 21.4mm x 90mm and a weight of 140g, the sensors are easy to install and integrate into existing systems. They come with supplied accessories including M18 x 1 nuts for secure mounting. The Datasensing SAC/0P-1C Sensors are CE approved, making them a trusted choice for industrial applications requiring high precision and reliability.
- Nominal sensing distance:
- 6m
- Thermal drift of Sr:
- 10% Sr
- Repeat Accuracy:
- 5%
- Sensitivity adjustment:
- Trimmer
- Function Principle:
- Retroreflex
- Notes:
- On RL110 reflector
- Optic position:
- Axial
- Output type:
- PNP L/D Selectable
- Output Function:
- L/D Selectable
- Switching frequency:
- 1Khz
- Response time:
- 500µs
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 30mA
- Load current:
- ?100mA
- Leakage current:
- ?10µA
- Output voltage drop:
- ?2V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- Green (powerON), Yellow (Status output)
- Time delay before availability:
- ?200ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Emission:
- LED Infrared (880nm)
- Interference to external light:
- 3.000lux (incandescent lamp), 10.000lux (sunlight)
- Weight:
- 140g
- Housing Material:
- Nickel-plated brass / Nylon cable exit
- Connections:
- 2m PVC cable 90°
- Active Head Material:
- PMMA
- Tightening torque:
- 25Nm
- Operating temperature:
- - 25°C + 70° C (without freeze)
- Diameter/Dimension:
- M18
- Approvals:
- CE
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Supplied Accessories:
- Nuts M18 x 1
- Operating Temperature:
- - 25°C + 70°C (Without freeze)
- Mechanical Protection:
- IP67
