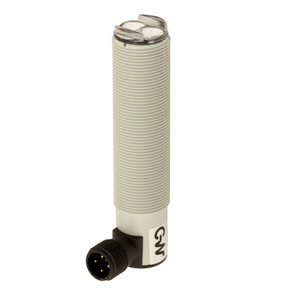

Datasensing SAP/0P-0K Sensors
Datasensing
$158.84
The Datasensing SAP/0P-0K Sensors are advanced photoelectric sensors designed for precision and reliability. With a nominal sensing distance of 3 meters and a polarized function principle, these sensors are ideal for a variety of applications. They feature a sensitivity adjustment trimmer, allowing for fine-tuning to suit specific needs. The sensors are equipped with a double LED indicator for easy status monitoring, and offer NO/NC selectable output for versatile use.
Built to withstand harsh environments, the sensors boast an IP65 protection degree, ensuring complete protection against electrical damage. They are compatible with a wide range of plugs, accessories, and reflectors, and have been approved with CE certification. The sensors operate efficiently with a switching frequency of 1kHz and a response time of 500µs, powered by an operating voltage of 10
30VDC.
The robust construction includes a PBT/Nylon housing and PMMA active head material, with a compact design measuring 21.4mm x 89.8mm and weighing just 40g. The sensors are designed to operate in temperatures ranging from -25°C to +70°C, without freezing, and are protected against short-circuits and reverse polarity. With EMC compatibility to EN 60947-5-2 standards and resistance to shocks and vibrations, these sensors are built for durability and long-lasting performance.
- Nominal sensing distance:
- 3m
- Thermal drift of Sr:
- 10% Sr
- Repeat Accuracy:
- 5%
- Sensitivity adjustment:
- Trimmer
- Function Principle:
- Polarized
- Notes:
- On RL110 reflector
- Optic position:
- Axial
- Output type:
- PNP L/D Selectable
- Output Function:
- L/D Selectable
- Switching frequency:
- 1Khz
- Response time:
- 500µs
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 30mA
- Load current:
- ?100mA
- Leakage current:
- ?10µA
- Output voltage drop:
- ?2V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- Green (powerON), Yellow (Status output)
- Time delay before availability:
- ?200ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Emission:
- LED Red (660nm)
- Interference to external light:
- 3.000lux (incandescent lamp), 10.000lux (sunlight)
- Weight:
- 40g
- Housing Material:
- PBT / Nylon plug
- Connections:
- M12 plug 90°
- Active Head Material:
- PMMA
- Tightening torque:
- 1Nm
- Operating temperature:
- - 25°C + 70° C (without freeze)
- Diameter/Dimension:
- M18
- Approvals:
- CE
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Supplied Accessories:
- Nuts M18 x 1
- Operating Temperature:
- - 25°C + 70°C (Without freeze)
- Mechanical Protection:
- IP67
- 2D Files:
- View
- 3D Files:
- View
- CAD Files:
- View
- EU Declarations:
- View
- Catalog:
- View
