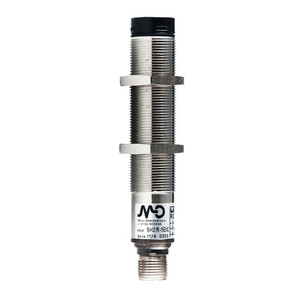

The Datasensing SH2/E-0EIC Sensors are advanced safety sensors designed for reliable performance in industrial environments. These M18 Type 2 safety photocell emitters feature a nominal sensing distance of 10 meters, with a thermal drift of Sr ? 10% and a single-beam resolution. The sensors are equipped with an effective aperture angle of ? ±5°, typically ±1.8°, ensuring precise detection capabilities.
Constructed with a durable PBT plastic housing and a glass active head, these sensors are built to withstand harsh conditions, offering an operating temperature range of -20°C to +55°C and a storage temperature range of -40°C to +75°C. They are compliant with EN50100 Category 2 and Category 4 standards, making them suitable for integration into safety systems that meet EN ISO 13849 requirements.
The SH2/E-0EIC Sensors operate on a voltage range of 10 to 30 Vdc, with a no-load supply current of ? 25mA and a maximum ripple content of ? 5 Vpp. They feature LED indicators for easy status monitoring, with a yellow LED indicating power and a red LED for emission. The sensors are designed to be used with an external safety control unit that includes an automatic optics test function, and they are not compatible with the SBCR03 control unit.
With a degree of protection rated at IP67, these sensors are resistant to dust and water ingress, ensuring reliable operation in demanding environments. They are approved by CE and TÜV, and are capable of withstanding shocks and vibrations as per IEC60068-2-29 and IEC60068-2-6 standards. Supplied with two nuts for easy installation, the Datasensing SH2/E-0EIC Sensors are an ideal choice for enhancing safety in industrial applications.
- Nominal sensing distance:
- 10m (ExG=4)
- Thermal drift of Sr:
- ? 10%
- Resolution:
- Single-beam
- controlled height:
- Single-beam
- Effective Aperture Angle:
- ? ±5°
- Effective Aperture Angle:
- Typical ±1,8°
- Function Principle:
- Emitter
- Notes:
- not working with SBCR03 control unit. To be used with external safety control unit with automatic optics test function
- Description:
- M18 Type 2 Safety Photocell Emitter
- Type:
- Type 2 safety photocell
- SIL:
- 1
- SILCL:
- 1
- PL:
- c
- PFHd:
- 1,00E-06
- MTTFd:
- 20 years
- Operating Voltage:
- 10 30 Vdc
- No-Load supply current:
- ? 25mA
- Max ripple content:
- ? 5 Vpp
- LED indicators:
- Yellow (power)
- Emission:
- Red
- Test levels:
- <5V emission inactive >15V emission active
- Housing Material:
- PBT
- Connections:
- M12 plug
- Active Head Material:
- Glass
- Operating temperature:
- -20°C +55°C
- Storage temperature:
- -40°C +75°C
- Approvals:
- CE, TÜV
- Shocks and vibrations:
- 10g - 16ms (according to IEC600068-2-29) 10Hz 55Hz - 1 oct/min - 0,35mm (according to 60068-2-6)
- Degree of protection:
- IP67
- Supplied Accessories:
- 2 x nuts
- Operating Temperature:
- -20 +55°C (Without freeze)
- Mechanical Protection:
- IP67
