The Datasensing SH2/R-1KIC Sensors are advanced safety sensor receivers designed for optimal performance in industrial environments. Featuring a robust M18 metal housing, these sensors offer a nominal sensing distance of 10 meters with an axial connection and are equipped with an M12 90° I/O interface compliant with IEC61131-2 standards. The sensors operate at a frequency of 123 kHz and are ideal for use in safety systems requiring EN ISO 13849 compliance when paired with a Category 2 or Category 4 safety control unit.
These Type 2 safety photocell receivers boast a single-beam resolution and an effective aperture angle of ? ±5°, ensuring precise detection capabilities. With a response time of 200µs for light/dark transitions and 400µs for dark/light transitions, they provide rapid and reliable performance. The sensors operate within a voltage range of 10 to 30 Vdc, with a no-load supply current of ? 25mA and a load current of ? 70mA.
Built to withstand harsh conditions, the SH2/R-1KIC Sensors feature a PBT housing and a glass active head material, offering protection against shocks and vibrations as per IEC60068-2-29 and IEC60068-2-6 standards. They are rated IP67 for mechanical protection, making them suitable for use in environments with humidity levels ranging from 15% to 95% and temperatures between -20°C and +55°C.
The sensors are equipped with yellow LED indicators for alignment and come with two nuts for easy installation. Approved by CE and TÜV, these sensors are a reliable choice for enhancing safety in various industrial applications. Please note that they are not compatible with the SBCR03 control unit and should be used with an external safety control unit featuring an automatic optics test function.
- Nominal sensing distance:
- 10m (ExG=4)
- Thermal drift of Sr:
- ? 10%
- Resolution:
- Single-beam
- controlled height:
- Single-beam
- Effective Aperture Angle:
- ? ±5°
- Effective Aperture Angle:
- Typical ±1,8°
- Function Principle:
- Receiver
- Notes:
- not working with SBCR03 control unit. To be used with external safety control unit with automatic optics test function
- Description:

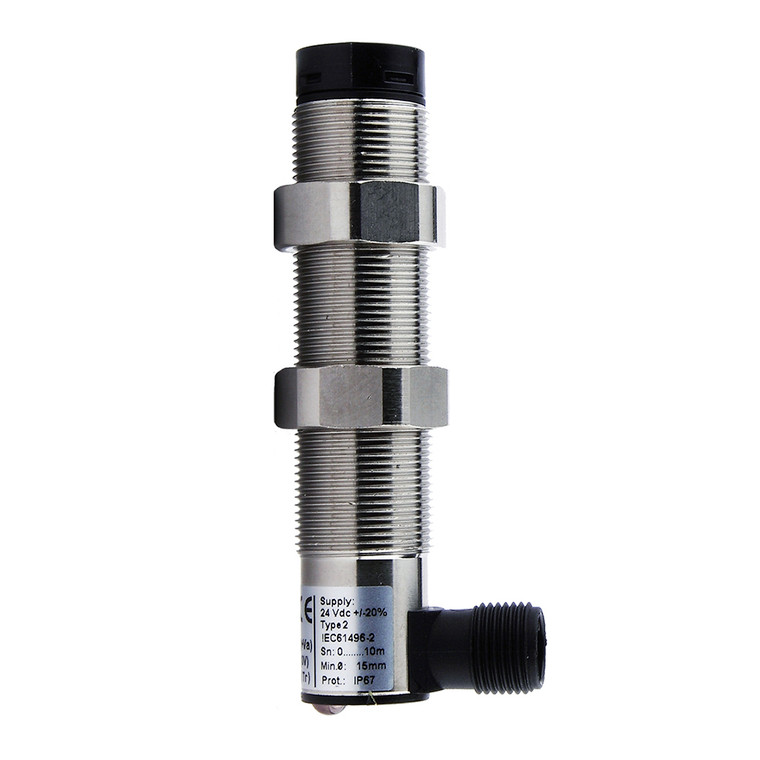

- M18 Type 2 Safety Photocell Receiver
- Type:
- Type 2 safety photocell
- SIL:
- 1
- SILCL:
- 1
- PL:
- c
- PFHd:
- 1,00E-06
- MTTFd:
- 20 years
- Output type:
- Totem-pole
- Resposnse time for light/dark transition:
- 200µs
- Resposnse time for dark/light transition:
- 400µs
- Operating Voltage:
- 10 30 Vdc
- No-Load supply current:
- ? 25mA
- Load current:
- ? 70mA
- Output voltage drop:
- 2,5V @ 50mA
- Max ripple content:
- ? 5 Vpp
- LED indicators:
- Yellow (alignement)
- Housing Material:
- PBT
- Connections:
- M12 plug
- Active Head Material:
- Glass
- Operating temperature:
- -20°C +55°C
- Storage temperature:
- -40°C +75°C
- Approvals:
- CE, TÜV
- Shocks and vibrations:
- 10g - 16ms (according to IEC600068-2-29) 10Hz 55Hz - 1 oct/min - 0,35mm (according to 60068-2-6)
- Degree of protection:
- IP67
- Supplied Accessories:
- 2 x nuts
- Operating Temperature:
- -20 +55°C (Without freeze)
- Mechanical Protection:
- IP67
