Datasensing SH4-30-0300-A-12 = SH4 ADVANCED Res=30mm H=300mm Rec.Connector=12poles

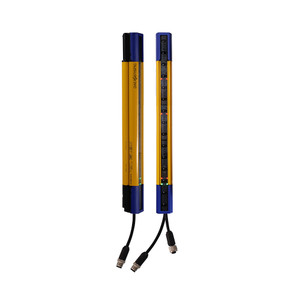

The Datasensing SH4-30-0300-A-12 is an advanced safety light curtain designed for optimal hand protection with a resolution of 30 mm and a controlled height of 300 mm. This Type 4 safety device features a compact profile of 35 x 40 mm, ensuring easy installation and integration into various environments. With an improved operating range of up to 20 meters, it offers reliable performance in diverse settings. Equipped with innovative wireless monitoring and configuration capabilities, the SH4-30-0300-A-12 allows for seamless Wi-Fi programmability, enhancing its adaptability and ease of use. The device supports both manual and automatic restart functions, along with EDM, ensuring safety and efficiency in operation. The SH4-30-0300-A-12 includes advanced muting functions such as partial muting, dynamic partial muting, and 4-signals muting, as well as multiple fixed or floating blanking zones. Its optical synchronization with 2 beams and integrated laser pointer facilitate precise alignment, while LED indications provide clear feedback on beam intensity and muting status. Designed to withstand harsh conditions, this safety light curtain operates within a temperature range of -30 to +55 °C and offers IP67 protection. It is also resistant to shocks and vibrations, meeting rigorous standards for durability and reliability. The package includes a complete couple and angular bracket, with additional muting accessories available for enhanced functionality. The SH4-30-0300-A-12 is cascadable with SH4 CASCADE units, allowing for expanded coverage and flexibility in complex applications. With approvals from CE, cULus, TÜV, and UKCA, this device meets stringent safety and quality standards, making it an ideal choice for safeguarding industrial environments.
