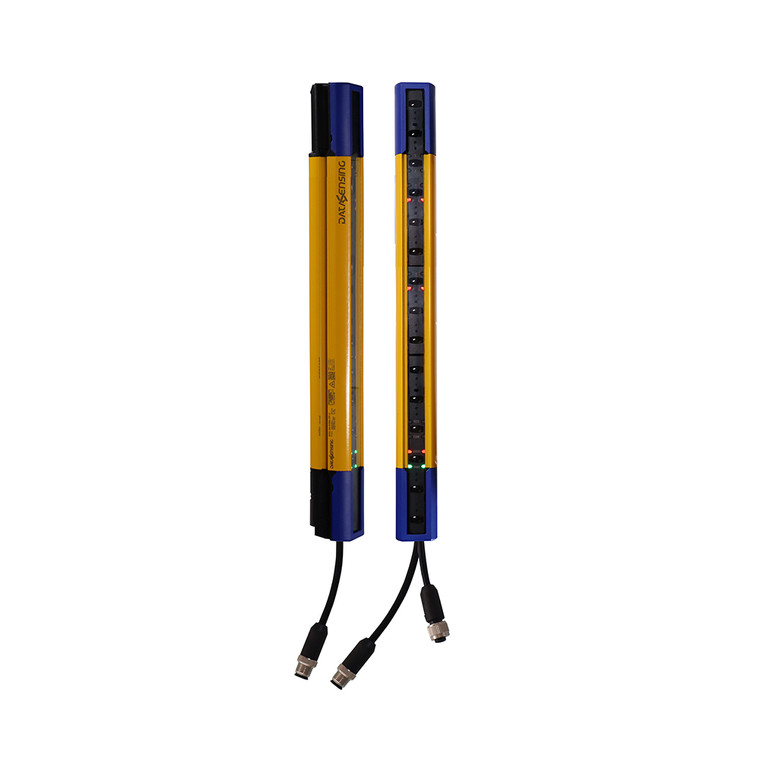

Datasensing SH4-30-1650-SM-8-5 = SH4 STANDARD MUTING Res=30mm H=1650mm Rec.Connectors=8poles+5 poles

The Datasensing SH4-30-1650-SM-8-5 is a high-performance safety light curtain designed for optimal hand protection with a resolution of 30 mm and a controlled height of 1650 mm. This compact, no-dead-zone device features an improved operating range of up to 20 meters and is equipped with essential functions such as alignment, automatic restart, and manual restart. It also includes advanced muting functions like 2-signals mono and bidirectional muting, override, and EDM, all configurable via DIP-SW. The SH4-30-1650-SM-8-5 boasts a robust design with a compact profile of 35 x 40 mm, common to the entire SH4 line, and is built to withstand harsh environments with an IP67 protection rating and an operating temperature range of -30 to +55 °C. The device is equipped with optical synchronization using 2 beams, zero dead zone, and integrated LED muting indication for ease of installation and operation. This safety light curtain is designed for seamless integration, featuring pigtails with M12 connectors and standard non-shielded cables, and is cascadable with the SH4 CASCADE up to three units. It includes anti-interference codes and muting accessories with prewired and preinstalled muting sensors. The package comes complete with a couple and angular bracket, and additional accessories like top-bottom rotating mounting brackets are available separately. With a nominal sensing distance of 0.2 to 20 meters, a response time of 14 ms, and a load current of ? 250mA per output, the SH4-30-1650-SM-8-5 ensures reliable performance. It is constructed from durable materials such as painted aluminum, MAKROLON AR 7099 Clear PC, and PBT, and meets rigorous standards with approvals from CE, cULus, TÜV, and UKCA. The device is also EMC compatible according to the 2014/30/EU Directive, making it a versatile and dependable choice for safety applications.
