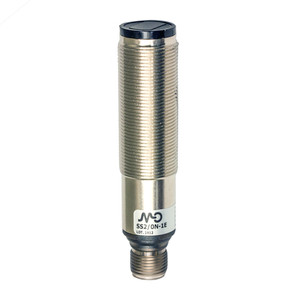

Datasensing SST/0P-1E Sensors
Datasensing
$151.93
The Datasensing SST/0P-1E Sensors are advanced photoelectric sensors designed for precise detection with a nominal sensing distance of 12 to 25mm. Featuring a robust nickel-plated brass housing and PMMA active head, these sensors are built to withstand harsh environments with an IP67 protection rating. The sensors offer blackground suppression with a PNP L/D selectable output, ensuring reliable performance even in challenging lighting conditions, with interference resistance up to 3000lux for incandescent lamps and 10000lux for sunlight.
Equipped with a side sensor adjustment on both axial and right-angle optics, the SST/0P-1E models provide flexibility in installation and application. The LED status indicator allows for easy monitoring, while the short-circuit and reverse polarity protection ensure durability and safety. With a high switching frequency of 1kHz and a rapid response time of 500µs, these sensors are ideal for fast-paced industrial environments.
The sensors are CE and cULus listed, meeting stringent safety and performance standards. They are also available in ATEX models, category 3, upon request, making them suitable for use in potentially explosive atmospheres. The compact design, with dimensions of M18 x 1 and a length of 78mm, along with an M12 plug connection, facilitates easy integration into existing systems.
Whether for automation, manufacturing, or other industrial applications, the Datasensing SST/0P-1E Sensors deliver reliable and accurate performance, backed by complete protection against electrical damages and a wide operating temperature range of -25°C to +70°C.
- Nominal sensing distance:
- 12, 25mm
- Thermal drift of Sr:
- ?10% Sr
- Repeat Accuracy:
- 5%
- minimum detectable object:
- 0,1mm
- Sensitivity adjustment:
- No
- Function Principle:
- Blackground suppression
- Notes:
- white target Kodak 90% 100 x 100mm
- Optic position:
- Axial
- Output type:
- PNP L/D Selectable
- Output Function:
- L/D Selectable
- Switching frequency:
- 1Khz
- Response time:
- 500µs
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 30mA
- Load current:
- ?100mA
- Leakage current:
- ?10?A
- Output voltage drop:
- ?1,2V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- Yellow (status output)
- Time delay before availability:
- ?200ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Emission:
- LED Red (660nm)
- Interference to external light:
- 3000lux (incandescent lamp), 10000lux (sunlight)
- Impulsive Overvoltage Protection:
- Yes
- Weight:
- 100g
- Housing Material:
- Nickel plated brass / PC plug
- Connections:
- M12 plug
- Active Head Material:
- PMMA
- Tightening torque:
- 25Nm
- Operating temperature:
- - 25°C + 70° C (Without freeze)
- Diameter/Dimension:
- M18
- Approvals:
- CE
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Supplied Accessories:
- nuts M18 x 1
- Operating Temperature:
- - 25°C + 70°C (Without freeze)
- Mechanical Protection:
- IP67
