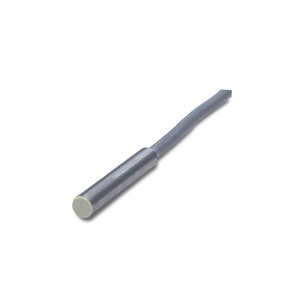

Datasensing ST 08-C Sensors
Datasensing
$3.38
The Datasensing ST 08-C Sensors are designed for precision and reliability in industrial applications. Featuring an M8 standard non-flush mount, these inductive proximity sensors offer a nominal sensing distance of 2mm and an operating distance of 0 to 1.62mm. With a standard target size of 8x8mm FE360, they provide excellent repeat accuracy of less than 3% and a hysteresis of less than 10%. The sensors are equipped with a PNP NO output type and a switching frequency of 1kHz, ensuring fast and accurate detection.
Constructed with a robust nickel-plated brass housing and an active head made of LCP, these sensors are built to withstand harsh environments, with an operating temperature range of -25°C to +70°C and an IP67 mechanical protection rating. The sensors are also equipped with short-circuit and reverse polarity protection, as well as protection against inductive loads, ensuring durability and longevity.
The ST 08-C Sensors come with a 2m PVC cable for easy installation and feature a yellow LED indicator for output state visibility. They are certified by CE and cULus, and are compatible with Ecolab and Diversey industrial detergents. Supplied with two M8x1 nuts, these sensors are ready for immediate integration into your system.
- Nominal sensing distance:
- 2mm
- Operanting distance:
- 0 1,62mm
- Standard target:
- 8x8mm FE360
- Correction Factor:
- copper: 0,4 0,5 / aluminium: 0,4 0,6 / brass: 0,5 0,7 / stainelss steel: 0,7 1,05
- Repeat Accuracy:
- < 3% (UB 24V Ta=23°C ±5°C)
- Hysteresis:
- < 10%
- Description:
- M8 standard no-flush mount
- Functions:
- Proximity
- Output type:
- PNP
- Output Function:
- NO
- Switching frequency:
- 1kHz
- Response time:
- 0,5
- Operating Voltage:
- 10...30Vdc
- No-Load supply current:
- ? 10mA
- Load current:
- 200mA
- Output voltage drop:
- ? 1,2V @100mA
- Max ripple content:
- ? 10%
- LED indicators:
- Yellow LED output state
- Time delay before availability:
- ? 50ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Emission:
- ?100kHz
- Protection against inductive loads:
- Yes
- Mounting:
- Unshielded
- Dimensions:
- Ø8x55
- Housing Material:
- Nickel-plated brass
- Connections:
- 2m PVC Cable
- Active Head Material:
- LCP
- Tightening torque:
- 2Nm
- Material:
- Nickel-plated brass
- Diameter/Dimension:
- M8
- Approvals:
- CE cULus
- Supplied Accessories:
- 2 nuts M8x1
- Dimensions:
- Ø8 / L = 55mm
- Operating Temperature:
- -25°C +70°C
- Mechanical Protection:
- IP67
