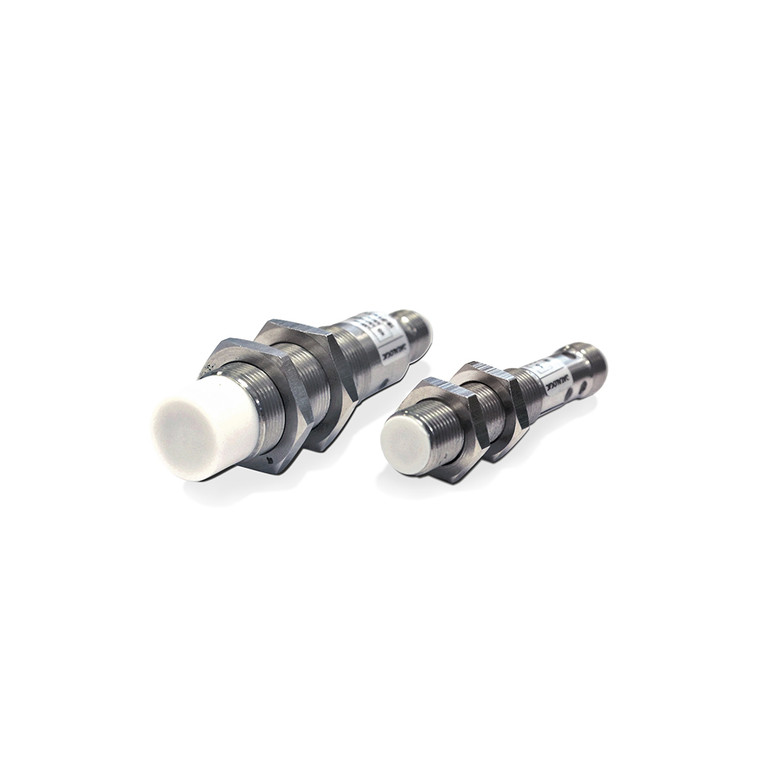

The Datasensing ST 18-S Sensors are high-performance inductive proximity sensors designed for industrial applications. Featuring a robust stainless steel housing with a diameter of Ø18mm and a length of 73mm, these sensors are built to withstand harsh environments. They offer a nominal sensing distance of 5mm and an operating distance of 0
4.05mm, making them ideal for precise detection tasks. The sensors are equipped with a PNP NO output type and a switching frequency of 1kHz, ensuring fast and reliable performance.
These sensors are flush mountable and weld field immune, providing versatility in installation. They are compatible with a range of materials, with correction factors for copper, aluminum, brass, and stainless steel. The sensors feature a yellow LED indicator for output state, and they are protected against short circuits, reverse polarity, and inductive loads. With an operating voltage range of 10...30Vdc and a no-load supply current of ? 10mA, they are energy-efficient and reliable.
The ST 18-S Sensors are certified by Ecolab and Diversey for use with industrial detergents, and they meet CE approval standards. They operate effectively in temperatures ranging from -25°C to +70°C and offer IP67 mechanical protection, ensuring durability and longevity in demanding conditions.
- Nominal sensing distance:
- 5mm
- Operanting distance:
- 0 4,05mm
- Standard target:
- 18x18mm FE360
- Correction Factor:
- copper: 0,4 / aluminium: 0,45 / brass: 0,5 / stainelss steel: 0,85
- Repeat Accuracy:
- < 1% (UB 24V Ta=23°C ±5°C)
- Hysteresis:
- < 15%
- Description:
- M18 weld field immune flush mount
- Functions:
- Proximity
- Output type:
- PNP
- Output Function:
- NO
- Switching frequency:
- 1kHz
- Response time:
- 0,5
- Operating Voltage:
- 10...30Vdc
- No-Load supply current:
- ? 10mA
- Load current:
- 200mA
- Output voltage drop:
- ? 1,5V @100mA
- Max ripple content:
- ? 10%
- LED indicators:
- Yellow LED output state
- Time delay before availability:
- < 0,1ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Emission:
- ?100kHz
- Protection against inductive loads:
- Yes
- Mounting:
- Shielded
- Dimensions:
- Ø18x73
- Housing Material:
- Stainless steel
- Connections:
- M12 Plug
- Active Head Material:
- PTFE
- Material:
- Stainless steel
- Diameter/Dimension:
- M18
- Approvals:
- CE
- Dimensions:
- Ø18 / L = 73mm
- Operating Temperature:
- -25°C +70°C
- Mechanical Protection:
- IP67
