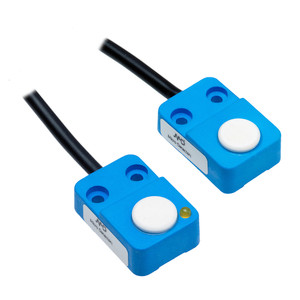

The Datasensing UHS/CN-0A Sensors are designed for precision and reliability in various industrial applications. Featuring a robust plastic housing with IP67 protection, these ultrasonic sensors are safeguarded against electric damages and environmental factors. With a nominal sensing distance of 1100mm and a beam angle of ±9°, they ensure accurate detection and performance. The sensors operate on an NPN NC output type, with a switching frequency of 500Hz and a rapid response time of 1ms, making them ideal for high-speed operations.
Equipped with a 2m PVC cable, the UHS/CN-0A sensors offer easy installation and connectivity. The sensors are built with thermal compensation, ensuring consistent performance across a wide operating temperature range of -15°C to +60°C. The active head is made of ceramics, enhancing durability and sensitivity. Additional features include short-circuit protection, reverse polarity protection, and impulsive overvoltage protection, ensuring long-term reliability and safety.
The sensors are CE approved and comply with EMC compatibility standards IEC 60947-5-2, as well as shocks and vibrations standards IEC EN 60947-5-2 / 7.4. With a compact cubic design measuring 24 x 50 x 15mm and weighing 150g, these sensors are easy to integrate into various systems. The yellow LED indicator provides clear status updates, signaling output activity or incorrect alignment. Ideal for applications requiring precise sensing and robust protection, the Datasensing UHS/CN-0A Sensors are a dependable choice for your industrial needs.
- Nominal sensing distance:
- 1100mm
- Beam angle:
- ± 9°
- Sensitivity adjustment:
- No
- thermal compensation:
- Yes
- Minimum sensing distance (blind zone):
- 0mm
- Function Principle:
- Emitter + Receiver
- Output type:
- NPN
- Output Function:
- NC
- Switching frequency:
- 500Hz
- Response time:
- 1ms
- Operating Voltage:
- 19 - 30Vdc
- Load current:
- 40mA
- Leakage current:
- < 10µA
- Output voltage drop:
- < 2,5V
- Max ripple content:
- < 10%
- LED indicators:
- Yellow LED (output active or incorrect alignment)
- Time delay before availability:
- < 200ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Impulsive Overvoltage Protection:
- Yes
- Weight:
- 150g
- Housing Material:
- PBTP
- Connections:
- 2m PVC cable
- Active Head Material:
- ceramics
- Storage temperature:
- - 25°C + 75° C (without freeze)
- Transducer Frequency:
- 180KHz
- Diameter/Dimension:
- Cubic
- Approvals:
- CE
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- IEC EN 60947-5-2 / 7.4
- Degree of protection:
- IP67
- Mechanical Protection:
- IP67
