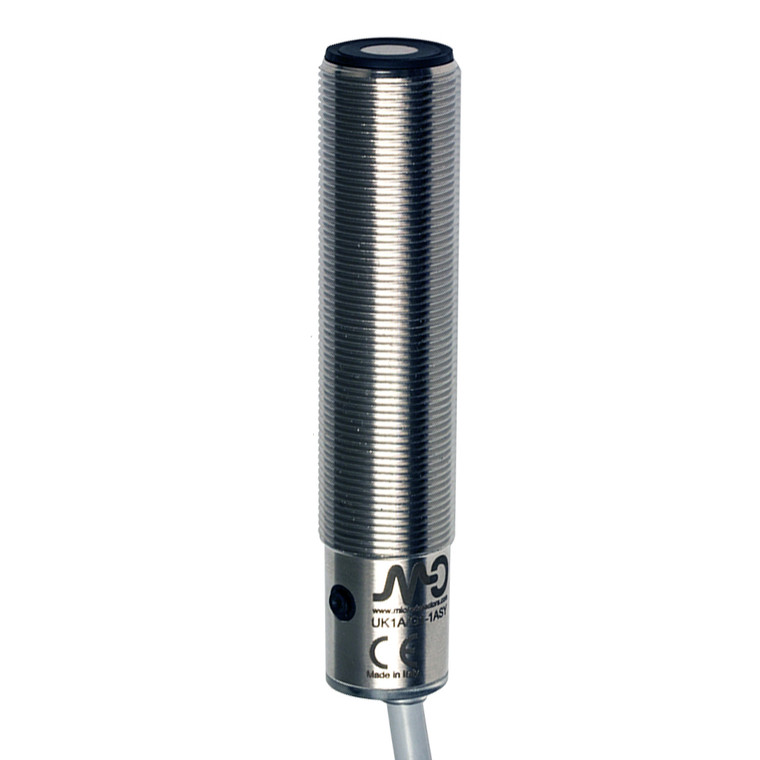

Datasensing UK1A/G1-1ASY Sensors

The Datasensing UK1A/G1-1ASY Sensors are designed for precision and reliability in various industrial applications. These sensors feature an M18 analog design with a 0-10V output, housed in durable AISI316L material. They offer models with both digital programmable outputs and current or voltage analogue outputs, providing flexibility for different needs. The adjustable hysteresis function, along with programmable double digital outputs, is ideal for level-specific applications. The sensors are equipped with a Teach-in button for quick and easy setup, allowing for working area adjustments through window teach or single point teach methods. A multifunction LED indicator provides clear feedback on output type, adjustment procedures, NO/NC selection, and reverse analog output slope. With a nominal sensing distance of 400mm and a thermal drift of Sr at ±2%, these sensors ensure high accuracy with a repeat accuracy of 0.50% and a resolution of ?3mm. The beam angle is set at 10° ± 2°, and the sensitivity can be adjusted via the Teach-in button. The sensors also feature thermal compensation, a minimum sensing distance of 50mm, and a linearity error of 1%. Operating within a voltage range of 10 - 30Vdc, these sensors have a no-load supply current of ?50mA and a load current of 100mA. They are equipped with short-circuit, reverse polarity, and impulsive overvoltage protection, ensuring robust performance in demanding environments. The sensors are housed in PBT material with an IP67 degree of protection, making them suitable for harsh conditions. Additional features include a response time of 500ms, a switching frequency of 10Hz, and a time delay before availability of ?300ms. The sensors come with a 2m PVC cable for easy connectivity and are supplied with two M18x1 nuts and two Ø 18 washers. With CE cULus approvals and EMC compatibility with IEC 60947-5-2, these sensors meet high industry standards for safety and performance.
