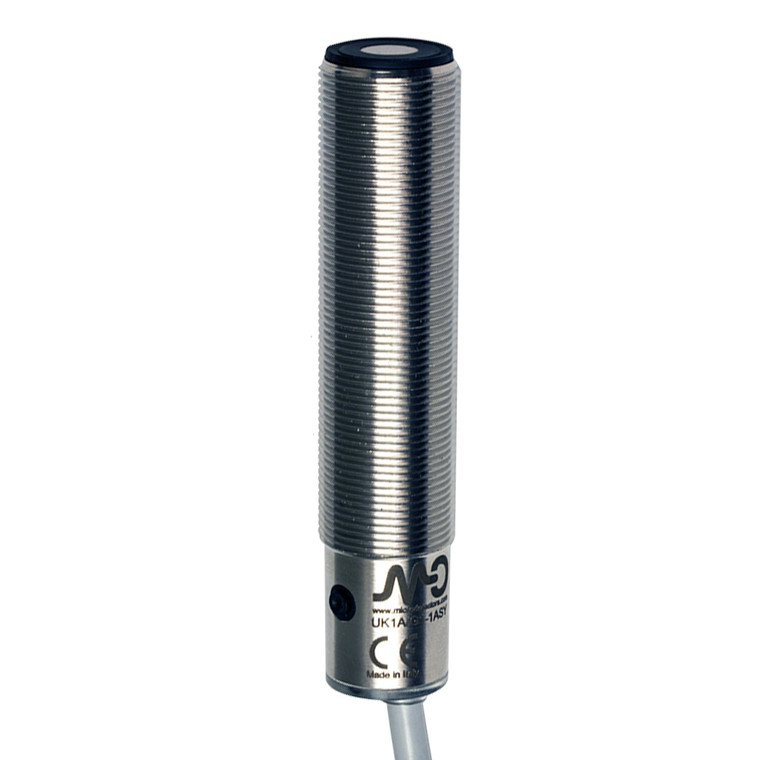

Datasensing UK1A/G4-1ASY Sensors
Datasensing
$422.95
The Datasensing UK1A/G4-1ASY Sensors are designed for precision and reliability in various industrial applications. These sensors feature an M18 NPN output with a 4..20mA current loop, housed in robust AISI316L stainless steel for enhanced durability. With a nominal sensing distance of 400mm and a beam angle of 10° ± 2°, they offer high accuracy with a repeat accuracy of 0.50% and a resolution of ?3mm. The sensors are equipped with a Teach-in button for easy sensitivity adjustment and an adjustable hysteresis function, making them ideal for level-specific applications.
The multifunction LED indicator provides clear feedback on output type, adjustment procedures, and NO/NC selection, while the reverse analog output slope ensures versatile operation. These sensors operate within a voltage range of 10 - 30Vdc, with a no-load supply current of ?50mA and a load current of 100mA. They are protected against short-circuits, reverse polarity, and impulsive overvoltage, ensuring reliable performance in demanding environments.
With a switching frequency of 10Hz and a response time of 500ms, these sensors are designed for fast and efficient operation. The IP67-rated housing provides excellent protection against dust and water ingress, making them suitable for harsh conditions. The sensors come with a 2m PVC cable for easy installation and are approved by CE and cULus standards, ensuring compliance with international safety and quality regulations.
- Nominal sensing distance:
- 400mm
- Thermal drift of Sr:
- ±2%
- Repeat Accuracy:
- 0,50%
- Beam angle:
- 10° ± 2°
- Resolution:
- ?3mm
- Sensitivity adjustment:
- Teach-in button
- Hysteresis:
- 1%
- thermal compensation:
- Yes
- Minimum sensing distance (blind zone):
- 50mm
- Linearity error:
- 1%
- Function Principle:
- Diffuse reflection
- Output type:
- NPN + 4...20mA
- Output Function:
- NO/NC + positive/negative slope
- Switching frequency:
- 10Hz
- Response time:
- 500ms
- Operating Voltage:
- 10 - 30Vdc
- No-Load supply current:
- ?50mA
- Load current:
- 100mA
- Leakage current:
- 10?A @ 30Vcc
- Output voltage drop:
- 2,2Vmax. @ IL=100 mA
- Max ripple content:
- 5%
- LED indicators:
- green: echo - yellow: output
- Time delay before availability:
- ?300ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Impulsive Overvoltage Protection:
- Yes
- Weight:
- 170g
- Housing Material:
- stainless steel AISI 316L
- Connections:
- 2m PVC Cable
- Tightening torque:
- 50Nm
- Storage temperature:
- - 35°C + 80° C without freeze
- Transducer Frequency:
- 300kHz
- Diameter/Dimension:
- M18
- Approvals:
- CE cULus
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- IEC EN60947-5-2 / 7.4
- Degree of protection:
- IP67
- Supplied Accessories:
- 2 nuts M18x1, 2 washers Ø 18
- Mechanical Protection:
- IP67
