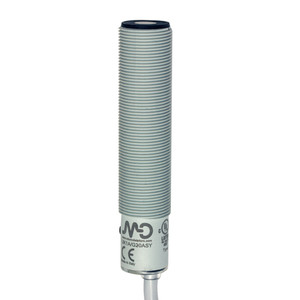

Datasensing UK1A/G6-0ASY Sensors
Datasensing
$353.09
The Datasensing UK1A/G6-0ASY Sensors are advanced ultrasonic sensors designed for precision and reliability. Featuring an M18 analog design, these sensors offer a 4-20 mA output with PNP NO/NC functionality, suitable for a range of applications with a sensing distance of 50-400 mm. The 2-meter cable and teach-in button allow for easy installation and quick setup. Constructed with durable plastic and cULus approved, these sensors are equipped with digital programmable outputs and current or voltage analogue outputs. The adjustable hysteresis function and programmable double digital outputs make them ideal for level-specific applications.
The working area can be adjusted using the teach-in button, providing flexibility for various operational needs. A multifunction LED indicator assists with output type, adjustment procedures, NO/NC selection, and reverse analog output slope. With a nominal sensing distance of 400mm and a thermal drift of ±2%, these sensors ensure high accuracy with a repeat accuracy of 0.50% and a resolution of ?3mm. The diffuse reflection function principle, combined with a PNP + 4...20mA output type, offers reliable performance.
Additional features include short-circuit, reverse polarity, and impulsive overvoltage protection, ensuring robust operation in challenging environments. The sensors operate within a voltage range of 10 - 30Vdc, with a no-load supply current of ?50mA and a load current of 100mA. The IP67-rated PBT housing provides excellent mechanical protection, while the sensors are designed to withstand operating temperatures from -20°C to +70°C. Supplied with two M18x1 nuts and two Ø 18 washers, these sensors are ready for immediate deployment in your industrial applications.
- Nominal sensing distance:
- 400mm
- Thermal drift of Sr:
- ±2%
- Repeat Accuracy:
- 0,50%
- Beam angle:
- 10° ± 2°
- Resolution:
- ?3mm
- Sensitivity adjustment:
- Teach-in button
- Hysteresis:
- 1%
- thermal compensation:
- Yes
- Minimum sensing distance (blind zone):
- 50mm
- Linearity error:
- 1%
- Function Principle:
- Diffuse reflection
- Output type:
- PNP + 4...20mA
- Output Function:
- NO/NC + positive/negative slope
- Switching frequency:
- 10Hz
- Response time:
- 500ms
- Operating Voltage:
- 10 - 30Vdc
- No-Load supply current:
- ?50mA
- Load current:
- 100mA
- Leakage current:
- 10?A @ 30Vcc
- Output voltage drop:
- 2,2Vmax. @ IL=100 mA
- Max ripple content:
- 5%
- LED indicators:
- green: echo - yellow: output
- Time delay before availability:
- ?300ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Impulsive Overvoltage Protection:
- Yes
- Weight:
- 110g
- Housing Material:
- PBT housing
- Connections:
- 2m PVC Cable
- Tightening torque:
- 1Nm
- Storage temperature:
- - 35°C + 80° C without freeze
- Transducer Frequency:
- 300kHz
- Diameter/Dimension:
- M18
- Approvals:
- CE cULus
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- IEC EN60947-5-2 / 7.4
- Degree of protection:
- IP67
- Supplied Accessories:
- 2 nuts M18x1, 2 washers Ø 18
- Mechanical Protection:
- IP67
