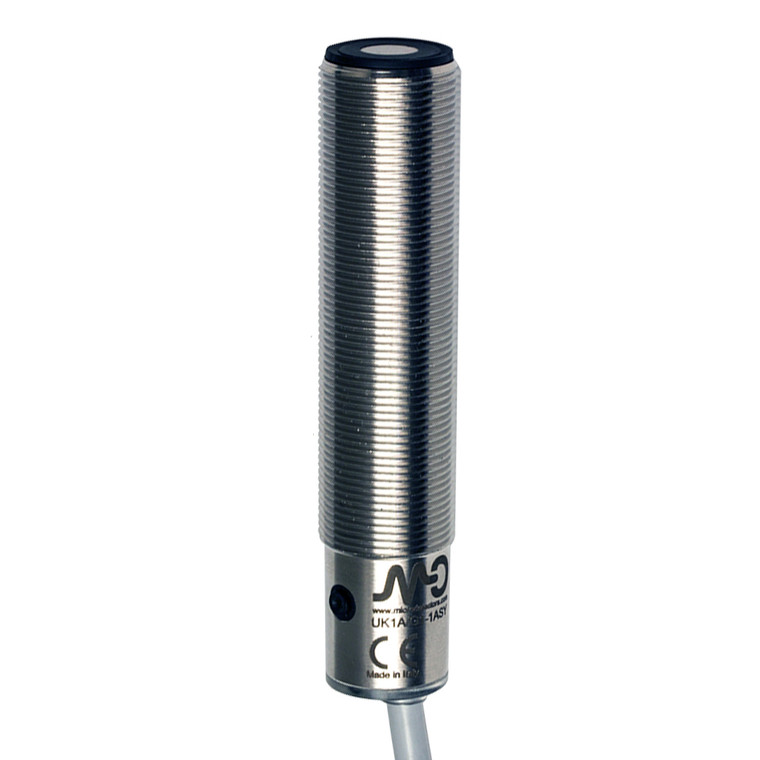

Datasensing UK1A/G6-1ASY Sensors
Datasensing
$402.81
The Datasensing UK1A/G6-1ASY Sensors are high-performance ultrasonic sensors designed for precise and reliable detection. Featuring an M18 analog design, these sensors offer a nominal sensing distance of 400mm with a thermal drift of ±2% and a repeat accuracy of 0.50%. The sensors are equipped with a 4-20 mA output and PNP NO/NC functionality, allowing for versatile application in various environments. The robust AISI316L stainless steel housing ensures durability and resistance to harsh conditions, while the 2m PVC cable provides flexibility in installation.
These sensors are equipped with a teach-in button for easy sensitivity adjustment and working area configuration, making them user-friendly and quick to set up. The adjustable hysteresis function and programmable double digital outputs are ideal for level-specific applications. The multifunction LED indicator provides clear feedback on output type, adjustment procedures, and NO/NC selection, ensuring seamless operation.
With a beam angle of 10° ± 2°, a resolution of ?3mm, and a switching frequency of 10Hz, these sensors deliver precise and consistent performance. They are designed to operate within a temperature range of -20°C to +70°C and are protected against short-circuits, reverse polarity, and impulsive overvoltage. The IP67 degree of protection ensures reliable operation in demanding environments, while the CE cULus approvals and EMC compatibility with IEC 60947-5-2 standards guarantee compliance with industry regulations.
Supplied with two M18x1 nuts and two Ø 18 washers, the Datasensing UK1A/G6-1ASY Sensors are ready for immediate integration into your system, providing a dependable solution for your sensing needs.
- Nominal sensing distance:
- 400mm
- Thermal drift of Sr:
- ±2%
- Repeat Accuracy:
- 0,50%
- Beam angle:
- 10° ± 2°
- Resolution:
- ?3mm
- Sensitivity adjustment:
- Teach-in button
- Hysteresis:
- 1%
- thermal compensation:
- Yes
- Minimum sensing distance (blind zone):
- 50mm
- Linearity error:
- 1%
- Function Principle:
- Diffuse reflection
- Output type:
- PNP + 4...20mA
- Output Function:
- NO/NC + positive/negative slope
- Switching frequency:
- 10Hz
- Response time:
- 500ms
- Operating Voltage:
- 10 - 30Vdc
- No-Load supply current:
- ?50mA
- Load current:
- 100mA
- Leakage current:
- 10?A @ 30Vcc
- Output voltage drop:
- 2,2Vmax. @ IL=100 mA
- Max ripple content:
- 5%
- LED indicators:
- green: echo - yellow: output
- Time delay before availability:
- ?300ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Impulsive Overvoltage Protection:
- Yes
- Weight:
- 170g
- Housing Material:
- stainless steel AISI 316L
- Connections:
- 2m PVC Cable
- Tightening torque:
- 50Nm
- Storage temperature:
- - 35°C + 80° C without freeze
- Transducer Frequency:
- 300kHz
- Diameter/Dimension:
- M18
- Approvals:
- CE cULus
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- IEC EN60947-5-2 / 7.4
- Degree of protection:
- IP67
- Supplied Accessories:
- 2 nuts M18x1, 2 washers Ø 18
- Mechanical Protection:
- IP67
