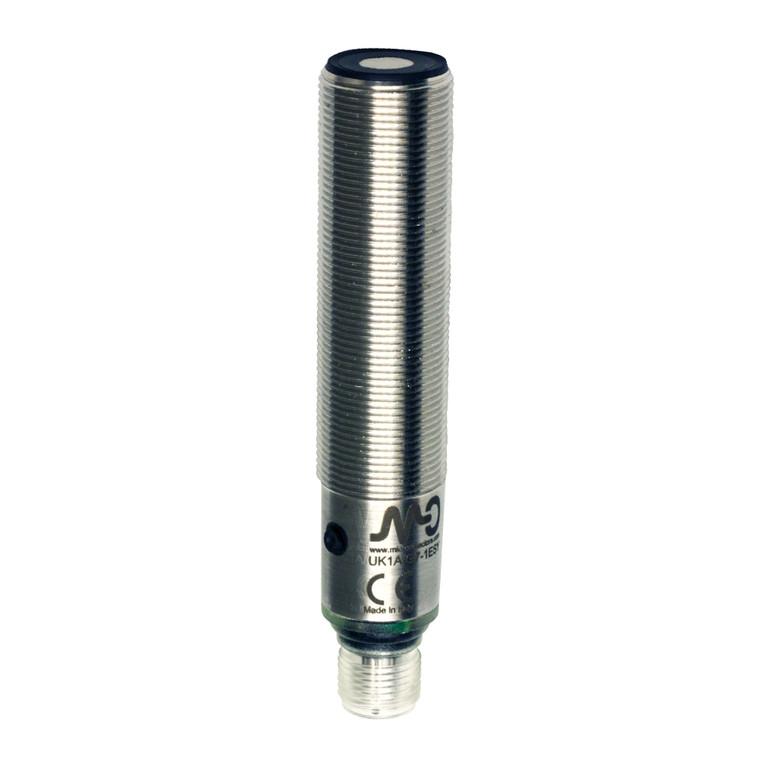

Datasensing UK1A/G6-1ESY Sensors
Datasensing
$417.73
The Datasensing UK1A/G6-1ESY Sensors are designed for precision and reliability in industrial applications. These sensors feature an ultrasonic M18 PNP + 4..20mA configuration with a Teach-in button for easy sensitivity adjustment. The robust stainless steel AISI 316L housing ensures durability, while the multifunction LED indicator provides clear status updates, including output type and adjustment procedures. With a nominal sensing distance of 400mm and a minimum sensing distance of 50mm, these sensors offer a high resolution of ?3mm and a beam angle of 10° ± 2°. The adjustable hysteresis function and programmable double digital outputs make them ideal for level-specific applications. They operate efficiently within a voltage range of 10 - 30Vdc, with a low no-load supply current of ?50mA. The sensors are equipped with short-circuit, reverse polarity, and impulsive overvoltage protection, ensuring safe and reliable operation. With an IP67 degree of protection, they are suitable for harsh environments, and their compliance with CE cULus and EMC compatibility standards guarantees quality and performance. Supplied with two M18x1 nuts and washers, these sensors are ready for immediate integration into your system.
- Nominal sensing distance:
- 400mm
- Thermal drift of Sr:
- ±2%
- Repeat Accuracy:
- 0,50%
- Beam angle:
- 10° ± 2°
- Resolution:
- ?3mm
- Sensitivity adjustment:
- Teach-in button
- Hysteresis:
- 1%
- thermal compensation:
- Yes
- Minimum sensing distance (blind zone):
- 50mm
- Linearity error:
- 1%
- Function Principle:
- Diffuse reflection
- Output type:
- PNP + 4...20mA
- Output Function:
- NO/NC + positive/negative slope
- Switching frequency:
- 10Hz
- Response time:
- 500ms
- Operating Voltage:
- 10 - 30Vdc
- No-Load supply current:
- ?50mA
- Load current:
- 100mA
- Leakage current:
- 10?A @ 30Vcc
- Output voltage drop:
- 2,2Vmax. @ IL=100 mA
- Max ripple content:
- 5%
- LED indicators:
- green: echo - yellow: output
- Time delay before availability:
- ?300ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Impulsive Overvoltage Protection:
- Yes
- Weight:
- 100g
- Housing Material:
- stainless steel AISI 316L
- Connections:
- M12 Plug
- Tightening torque:
- 50Nm
- Storage temperature:
- - 35°C + 80° C without freeze
- Transducer Frequency:
- 300kHz
- Diameter/Dimension:
- M18
- Approvals:
- CE cULus
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- IEC EN60947-5-2 / 7.4
- Degree of protection:
- IP67
- Supplied Accessories:
- 2 nuts M18x1, 2 washers Ø 18
- Mechanical Protection:
- IP67
