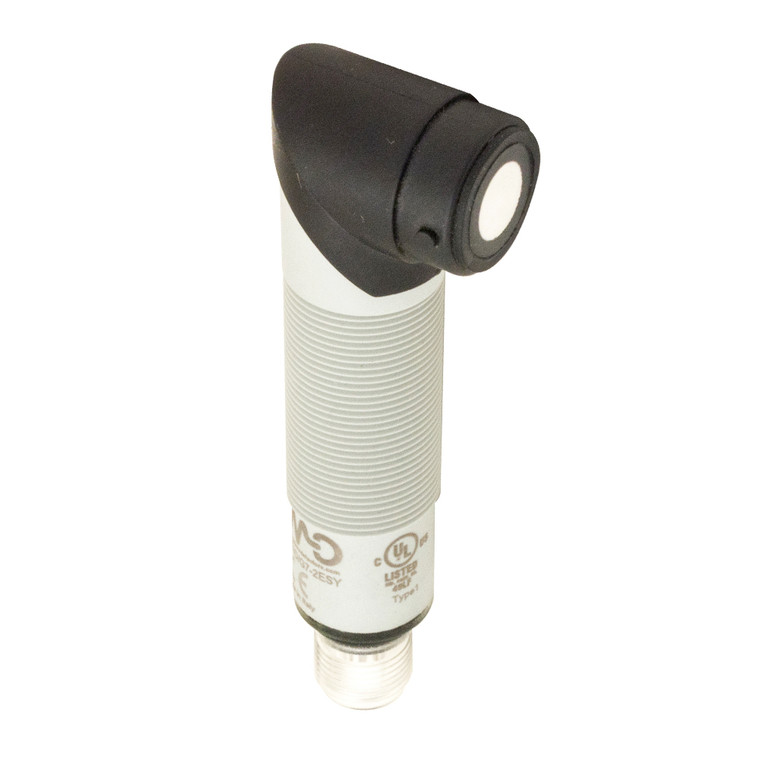

Datasensing UK1A/GM-2ESY Sensors

The Datasensing UK1A/GM-2ESY Sensors are advanced ultrasonic sensors designed for precision and reliability. Featuring an M18 NPN adjustable hysteresis with a standard window and NO+NC output, these sensors offer a sensing range of 50-400 mm and are equipped with a convenient M12 connection and a teach-in button for easy setup. The robust plastic housing is designed for a 90° installation, ensuring durability and compliance with cULus standards. These sensors are equipped with digital programmable outputs and offer models with either current or voltage analogue outputs. The adjustable hysteresis function, along with programmable double digital outputs, makes them ideal for level-specific applications. The working area can be adjusted using the teach-in button, allowing for quick and efficient setup across all models. A multifunction LED indicator provides clear feedback on output type, adjustment procedures, NO/NC selection, and reverse analog output slope. With a nominal sensing distance of 400mm and a thermal drift of ±2%, these sensors ensure high accuracy with a repeat accuracy of 0.50% and a resolution of ?3mm. The sensors operate on a diffuse reflection principle and feature a beam angle of 10° ± 2°. Designed for versatility, the sensors support a wide operating voltage range of 10 - 30Vdc and offer short-circuit, reverse polarity, and impulsive overvoltage protection. The IP67-rated PBT housing ensures mechanical protection, while the sensors' EMC compatibility with IEC 60947-5-2 standards guarantees reliable performance in various environments. Supplied with two M18x1 nuts and washers, these sensors are ready for immediate integration into your system.
