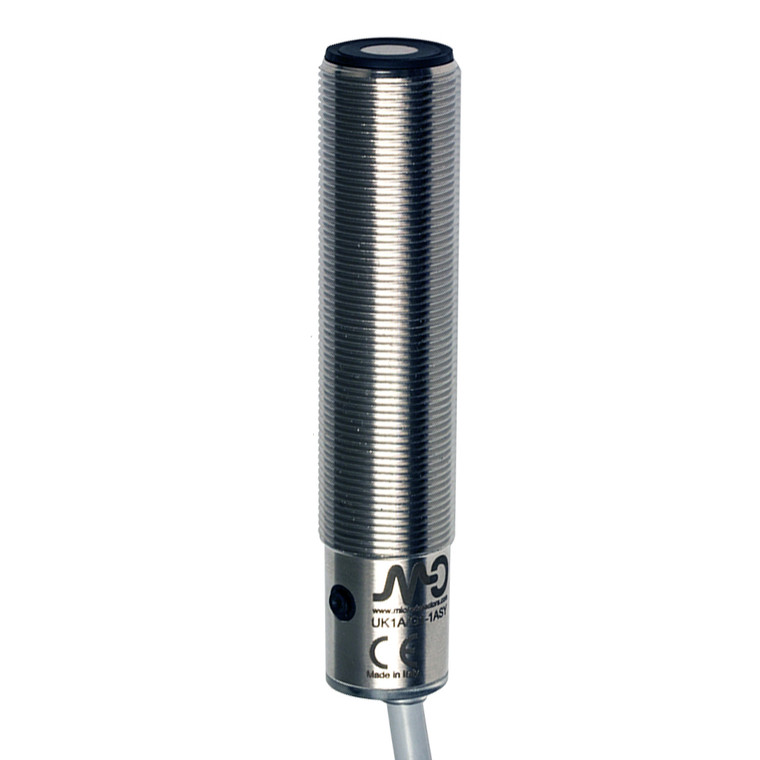

Datasensing UK1A/GP-1ASY Sensors
Datasensing
$353.31
The Datasensing UK1A/GP-1ASY Sensors are designed for precision and reliability in various industrial applications. These sensors feature a nominal sensing distance of 400mm and utilize a diffuse reflection function principle, ensuring accurate detection with a repeat accuracy of 0.50%. The sensors are equipped with a Teach-in button for easy sensitivity adjustment and an adjustable hysteresis function, making them ideal for level-specific applications.
With a robust stainless steel AISI 316L housing, these sensors are built to withstand harsh environments, offering an IP67 degree of protection. They operate efficiently within a temperature range of -20°C to +70°C and are equipped with short-circuit, reverse polarity, and impulsive overvoltage protection for enhanced durability. The sensors provide both digital programmable outputs and current or voltage analogue outputs, with a multifunction LED indicator to guide through output type, adjustment procedures, and more.
The UK1A/GP-1ASY Sensors are designed with a PNP output type and offer NO/NC output functions, with a switching frequency of 10Hz and a response time of 500ms. They are compatible with an operating voltage range of 10 - 30Vdc and have a no-load supply current of ?50mA. The sensors come with a 2m PVC cable for easy connectivity and are supplied with two nuts and washers for secure installation. With CE and cULus approvals, these sensors meet high standards of safety and performance, making them a reliable choice for your sensing needs.
- Nominal sensing distance:
- 400mm
- Thermal drift of Sr:
- ±2%
- Repeat Accuracy:
- 0,50%
- Beam angle:
- 10° ± 2°
- Resolution:
- ?3mm
- Sensitivity adjustment:
- Teach-in button
- Hysteresis:
- 1%
- thermal compensation:
- Yes
- Minimum sensing distance (blind zone):
- 50mm
- Linearity error:
- 1%
- Function Principle:
- Diffuse reflection
- Output type:
- PNP
- Output Function:
- NO/NC
- Switching frequency:
- 10Hz
- Response time:
- 500ms
- Operating Voltage:
- 10 - 30Vdc
- No-Load supply current:
- ?50mA
- Load current:
- 100mA
- Leakage current:
- 10?A @ 30Vcc
- Output voltage drop:
- 2,2Vmax. @ IL=100 mA
- Max ripple content:
- 5%
- LED indicators:
- green: echo - yellow: output
- Time delay before availability:
- ?300ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Impulsive Overvoltage Protection:
- Yes
- Weight:
- 170g
- Housing Material:
- stainless steel AISI 316L
- Connections:
- 2m PVC Cable
- Tightening torque:
- 50Nm
- Storage temperature:
- - 35°C + 80° C without freeze
- Transducer Frequency:
- 300kHz
- Diameter/Dimension:
- M18
- Approvals:
- CE cULus
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- IEC EN60947-5-2 / 7.4
- Degree of protection:
- IP67
- Supplied Accessories:
- 2 nuts M18x1, 2 washers Ø 18
- Mechanical Protection:
- IP67
