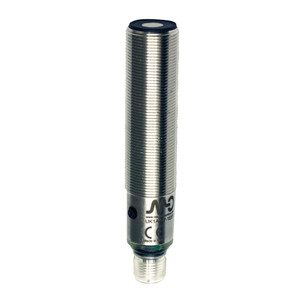

The Datasensing UK1A/GW-1ESY Sensors are designed for precision and reliability, featuring an M18 housing made from durable stainless steel AISI 316L. These sensors offer a nominal sensing distance of 400mm with a thermal drift of ±2% and a repeat accuracy of 0.50%. The beam angle is 10° ± 2°, and the resolution is ?3mm, ensuring accurate detection.
Equipped with a Teach-in button, the sensors allow for easy sensitivity adjustment and feature an adjustable hysteresis function with a 1% margin. The sensors operate on a diffuse reflection principle and provide dual PNP output with NO/NC multifunctions. They support a switching frequency of 10Hz and have a response time of 500ms, making them suitable for fast-paced environments.
The sensors are protected against short-circuits, reverse polarity, and impulsive overvoltage, ensuring long-term reliability. They operate within a voltage range of 10 - 30Vdc, with a no-load supply current of ?50mA and a load current of 100mA. The output voltage drop is a maximum of 2.2V at IL=100mA, and they feature a maximum ripple content of 5%.
The multifunction LED indicator provides clear status updates, including output type, adjustment procedure, and NO/NC selection. The sensors are designed to withstand harsh conditions, with an operating temperature range of -20°C to +70°C and a storage temperature range of -35°C to +80°C without freezing. They are IP67 rated for mechanical protection and comply with CE cULus and IEC 60947-5-2 standards for EMC compatibility.
Supplied with two M18x1 nuts and two Ø 18 washers, these sensors are easy to install and maintain, making them an ideal choice for various industrial applications.
- Nominal sensing distance:
- 400mm
- Thermal drift of Sr:
- ±2%
- Repeat Accuracy:
- 0,50%
- Beam angle:
- 10° ± 2°
- Resolution:
- ?3mm
- Sensitivity adjustment:
- Teach-in button
- Hysteresis:
- 1%
- thermal compensation:
- Yes
- Minimum sensing distance (blind zone):
- 50mm
- Linearity error:
- 1%
- Function Principle:
- Diffuse reflection
- Output type:
- 2x PNP
- Output Function:
- NO/NC multifunctions
- Switching frequency:
- 10Hz
- Response time:
- 500ms
- Operating Voltage:
- 10 - 30Vdc
- No-Load supply current:
- ?50mA
- Load current:
- 100mA
- Leakage current:
- 10?A @ 30Vcc
- Output voltage drop:
- 2,2Vmax. @ IL=100 mA
- Max ripple content:
- 5%
- LED indicators:
- green: echo - yellow: output
- Time delay before availability:
- ?300ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Impulsive Overvoltage Protection:
- Yes
- Weight:
- 100g
- Housing Material:
- stainless steel AISI 316L
- Connections:
- M12 Plug
- Tightening torque:
- 50Nm
- Storage temperature:
- - 35°C + 80° C without freeze
- Transducer Frequency:
- 300kHz
- Diameter/Dimension:
- M18
- Approvals:
- CE cULus
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- IEC EN60947-5-2 / 7.4
- Degree of protection:
- IP67
- Supplied Accessories:
- 2 nuts M18x1, 2 washers Ø 18
- Mechanical Protection:
- IP67
