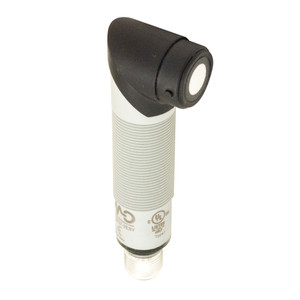

Datasensing UK1A/GW-2ESY Sensors
Datasensing
$364.06
The Datasensing UK1A/GW-2ESY Sensors are designed for precision and reliability in various industrial applications. These sensors feature a nominal sensing distance of 400mm and utilize a diffuse reflection function principle, ensuring accurate detection with a repeat accuracy of 0.50%. The sensors are equipped with a Teach-in button for easy sensitivity adjustment, allowing for quick setup and operation.
With a robust PBT housing and IP67 mechanical protection, these sensors are built to withstand harsh environments, operating efficiently within a temperature range of -20°C to +70°C. The multifunction LED indicators provide clear status updates, including output type and adjustment procedures, while the NO/NC multifunction output ensures versatile application compatibility.
The UK1A/GW-2ESY Sensors offer advanced features such as adjustable hysteresis, thermal compensation, and short-circuit protection, making them ideal for demanding tasks. The sensors support a wide operating voltage range of 10 - 30Vdc and are equipped with an M12 plug for secure connections. With approvals from CE and cULus, these sensors meet high safety and performance standards, ensuring reliable operation in any setting.
- Nominal sensing distance:
- 400mm
- Thermal drift of Sr:
- ±2%
- Repeat Accuracy:
- 0,50%
- Beam angle:
- 10° ± 2°
- Resolution:
- ?3mm
- Sensitivity adjustment:
- Teach-in button
- Hysteresis:
- 1%
- thermal compensation:
- Yes
- Minimum sensing distance (blind zone):
- 50mm
- Linearity error:
- 1%
- Function Principle:
- Diffuse reflection
- Output type:
- 2x PNP
- Output Function:
- NO/NC multifunctions
- Switching frequency:
- 10Hz
- Response time:
- 500ms
- Operating Voltage:
- 10 - 30Vdc
- No-Load supply current:
- ?50mA
- Load current:
- 100mA
- Leakage current:
- 10?A @ 30Vcc
- Output voltage drop:
- 2,2Vmax. @ IL=100 mA
- Max ripple content:
- 5%
- LED indicators:
- green: echo - yellow: output
- Time delay before availability:
- ?300ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Impulsive Overvoltage Protection:
- Yes
- Weight:
- 75g
- Housing Material:
- PBT housing
- Connections:
- M12 Plug
- Tightening torque:
- 1Nm
- Storage temperature:
- - 35°C + 80° C without freeze
- Transducer Frequency:
- 300kHz
- Diameter/Dimension:
- M18
- Approvals:
- CE cULus
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- IEC EN60947-5-2 / 7.4
- Degree of protection:
- IP67
- Supplied Accessories:
- 2 nuts M18x1, 2 washers Ø 18
- Mechanical Protection:
- IP67
- 2D Files:
- View
- 3D Files:
- View
- CAD Files:
- View
- EU Declarations:
- View
- Catalog:
- View
- User Manuals:
- View
