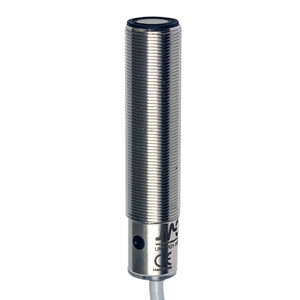

The Datasensing UK1C/G4-1ASY Sensors are high-performance ultrasonic sensors designed for precision and reliability. Featuring an M18 analog design, these sensors offer a 4-20 mA output with NPN NO/NC functionality, suitable for a wide range of applications. With a nominal sensing distance of 900mm and a minimum sensing distance of 100mm, they provide accurate detection within a 100-900 mm range. The sensors are equipped with a teach-in button for easy sensitivity adjustment and a multifunction LED indicator for output type, adjustment procedure, and more. Constructed with AISI316L stainless steel housing, they ensure durability and resistance to harsh environments. The sensors are cULus approved and offer protection features such as short-circuit, reverse polarity, and impulsive overvoltage protection. With a beam angle of 10° ± 2°, a resolution of ?3mm, and a response time of 500ms, these sensors deliver precise and reliable performance. Ideal for applications requiring adjustable hysteresis and thermal compensation, the Datasensing UK1C/G4-1ASY Sensors are a versatile choice for industrial automation needs.
- Nominal sensing distance:
- 900mm
- Thermal drift of Sr:
- ±2%
- Repeat Accuracy:
- 0,50%
- Beam angle:
- 10° ± 2°
- Resolution:
- ?3mm
- Sensitivity adjustment:
- Teach-in button
- Hysteresis:
- 1%
- thermal compensation:
- Yes
- Minimum sensing distance (blind zone):
- 100mm
- Linearity error:
- 1%
- Function Principle:
- Diffuse reflection
- Output type:
- NPN + 4...20mA
- Output Function:
- NO/NC + positive/negative slope
- Switching frequency:
- 4Hz
- Response time:
- 500ms
- Operating Voltage:
- 10 - 30Vdc
- No-Load supply current:
- ?50mA
- Load current:
- 100mA
- Leakage current:
- 10?A @ 30Vcc
- Output voltage drop:
- 2,2Vmax. @ IL=100 mA
- Max ripple content:
- 5%
- LED indicators:
- green: echo - yellow: output
- Time delay before availability:
- ?300ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Impulsive Overvoltage Protection:
- Yes
- Weight:
- 170g
- Housing Material:
- stainless steel AISI 316L
- Connections:
- 2m PVC Cable
- Tightening torque:
- 50Nm
- Storage temperature:
- - 35°C + 80° C without freeze
- Transducer Frequency:
- 300kHz
- Diameter/Dimension:
- M18
- Approvals:
- CE cULus
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- IEC EN60947-5-2 / 7.4
- Degree of protection:
- IP67
- Supplied Accessories:
- 2 nuts M18x1, 2 washers Ø 18
- Mechanical Protection:
- IP67
