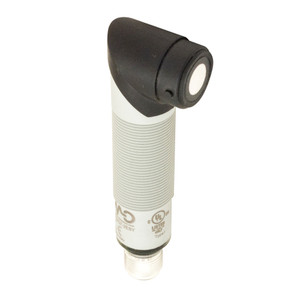

The Datasensing UK1C/G6-2ESY Sensors are advanced ultrasonic sensors designed for precision and reliability. Featuring an M18 analog design, these sensors offer a nominal sensing distance of 900mm with a thermal drift of ±2% and a repeat accuracy of 0.50%. The beam angle is 10° ± 2°, ensuring accurate detection with a resolution of ?3mm. Sensitivity can be easily adjusted using the Teach-in button, and the sensor includes a hysteresis of 1% with thermal compensation for consistent performance.
The sensor operates on a diffuse reflection principle, providing both PNP and 4...20mA output types with NO/NC and positive/negative slope functions. It boasts a switching frequency of 4Hz and a response time of 500ms, powered by an operating voltage range of 10 - 30Vdc. The no-load supply current is ?50mA, with a load current of 100mA and a leakage current of 10?A @ 30Vcc. The output voltage drop is 2.2Vmax. @ IL=100 mA, with a maximum ripple content of 5%.
Equipped with multifunction LED indicators, the sensor provides clear status updates: green for echo and yellow for output. It includes short-circuit, reverse polarity, and impulsive overvoltage protection, ensuring durability and safety. The sensor is housed in a robust PBT material with an IP67 degree of protection, making it suitable for harsh environments. It is designed to withstand operating temperatures from -20°C to +70°C and storage temperatures from -35°C to +80°C without freezing.
The sensor's compact dimensions (M18 x 1 / L = 88.3mm) and lightweight design (75g) make it easy to integrate into various applications. It comes with an M12 plug connection and includes supplied accessories such as 2 nuts M18x1 and 2 washers Ø 18. With CE cULus approvals and EMC compatibility with IEC 60947-5-2, the Datasensing UK1C/G6-2ESY Sensors are a reliable choice for precise and efficient sensing needs.
- Nominal sensing distance:
- 900mm
- Thermal drift of Sr:
- ±2%
- Repeat Accuracy:
- 0,50%
- Beam angle:
- 10° ± 2°
- Resolution:
- ?3mm
- Sensitivity adjustment:
- Teach-in button
- Hysteresis:
- 1%
- thermal compensation:
- Yes
- Minimum sensing distance (blind zone):
- 100mm
- Linearity error:
- 1%
- Function Principle:
- Diffuse reflection
- Output type:
- PNP + 4...20mA
- Output Function:
- NO/NC + positive/negative slope
- Switching frequency:
- 4Hz
- Response time:
- 500ms
- Operating Voltage:
- 10 - 30Vdc
- No-Load supply current:
- ?50mA
- Load current:
- 100mA
- Leakage current:
- 10?A @ 30Vcc
- Output voltage drop:
- 2,2Vmax. @ IL=100 mA
- Max ripple content:
- 5%
- LED indicators:
- green: echo - yellow: output
- Time delay before availability:
- ?300ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Impulsive Overvoltage Protection:
- Yes
- Weight:
- 75g
- Housing Material:
- PBT housing
- Connections:
- M12 Plug
- Tightening torque:
- 1Nm
- Storage temperature:
- - 35°C + 80° C without freeze
- Transducer Frequency:
- 300kHz
- Diameter/Dimension:
- M18
- Approvals:
- CE cULus
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- IEC EN60947-5-2 / 7.4
- Degree of protection:
- IP67
- Supplied Accessories:
- 2 nuts M18x1, 2 washers Ø 18
- Mechanical Protection:
- IP67
