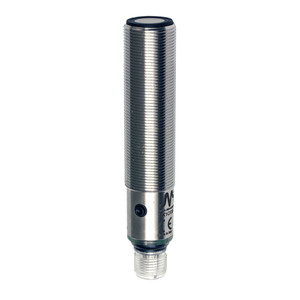

The Datasensing UK1C/G7-1ESY Sensors are high-performance ultrasonic sensors designed for precision and reliability. Featuring an M18 analog design, these sensors offer a 0-10 V+ PNP NO/NC output with a nominal sensing distance of 900mm, making them ideal for a variety of applications. The sensors are equipped with a teach-in button for easy sensitivity adjustment and a multifunction LED indicator that provides clear feedback on output type, adjustment procedures, and more.
Constructed with AISI316L stainless steel housing, these sensors are built to withstand harsh environments, offering IP67 protection and resistance to shocks and vibrations as per IEC EN60947-5-2 standards. The sensors are designed with a diffuse reflection function principle and have a beam angle of 10° ± 2°, ensuring accurate detection with a resolution of ?3mm.
With features like adjustable hysteresis, thermal compensation, and reverse polarity protection, the UK1C/G7-1ESY Sensors provide reliable performance even in challenging conditions. They operate within a temperature range of -20°C to +70°C and are approved by CE and cULus, ensuring compliance with international standards.
The sensors come with an M12 connection for easy integration and are supplied with two nuts and washers for secure installation. Whether for industrial automation, level detection, or other applications, the Datasensing UK1C/G7-1ESY Sensors deliver exceptional accuracy and durability.
- Nominal sensing distance:
- 900mm
- Thermal drift of Sr:
- ±2%
- Repeat Accuracy:
- 0,50%
- Beam angle:
- 10° ± 2°
- Resolution:
- ?3mm
- Sensitivity adjustment:
- Teach-in button
- Hysteresis:
- 1%
- thermal compensation:
- Yes
- Minimum sensing distance (blind zone):
- 100mm
- Linearity error:
- 1%
- Function Principle:
- Diffuse reflection
- Output type:
- PNP + 0...10V
- Output Function:
- NO/NC + positive/negative slope
- Switching frequency:
- 4Hz
- Response time:
- 500ms
- Operating Voltage:
- 10 - 30Vdc
- No-Load supply current:
- ?50mA
- Load current:
- 100mA
- Leakage current:
- 10?A @ 30Vcc
- Output voltage drop:
- 2,2Vmax. @ IL=100 mA
- Max ripple content:
- 5%
- LED indicators:
- green: echo - yellow: output
- Time delay before availability:
- ?300ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Impulsive Overvoltage Protection:
- Yes
- Minimum load resistence:
- 3k?
- Weight:
- 100g
- Housing Material:
- stainless steel AISI 316L
- Connections:
- M12 Plug
- Tightening torque:
- 50Nm
- Storage temperature:
- - 35°C + 80° C without freeze
- Transducer Frequency:
- 300kHz
- Diameter/Dimension:
- M18
- Approvals:
- CE cULus
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- IEC EN60947-5-2 / 7.4
- Degree of protection:
- IP67
- Supplied Accessories:
- 2 nuts M18x1, 2 washers Ø 18
- Mechanical Protection:
- IP67
