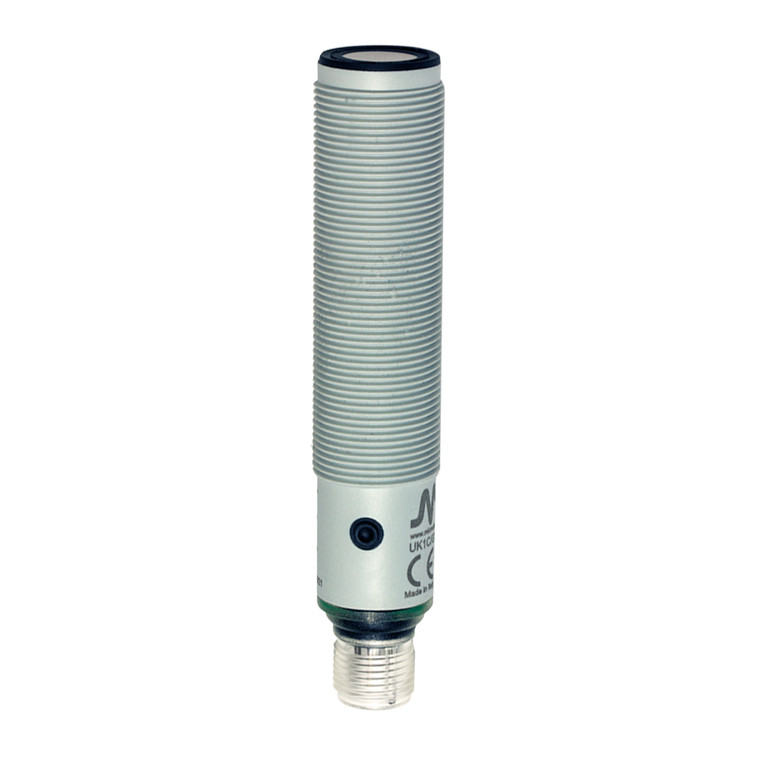

The Datasensing UK1C/G9-0ESY Sensors are advanced ultrasonic sensors designed for precision and reliability. Featuring an M18 analog design, these sensors offer a 0-10 V output with NPN NO/NC configurations, suitable for a wide range of applications. With a nominal sensing distance of 900mm and a minimum sensing distance of 100mm, they provide accurate detection with a repeat accuracy of 0.50% and a resolution of ?3mm. The sensors are equipped with a teach-in button for easy sensitivity adjustment and an adjustable hysteresis function, making them ideal for level-specific applications.
The multifunction LED indicator provides clear feedback on output type, adjustment procedures, and NO/NC selection, while the reverse analog output slope ensures versatile performance. Built with a durable PBT housing, these sensors are designed to withstand harsh environments, offering IP67 protection and operating temperatures ranging from -20°C to +70°C. They are equipped with short-circuit, reverse polarity, and impulsive overvoltage protection, ensuring safe and reliable operation.
With a compact M18 x 1 design and a weight of just 70g, the Datasensing UK1C/G9-0ESY Sensors are easy to install and integrate into existing systems. The sensors come with an M12 plug connection and are supplied with two nuts and washers for secure mounting. Approved by CE and cULus, these sensors meet IEC 60947-5-2 standards for EMC compatibility and are designed to withstand shocks and vibrations, making them a robust choice for industrial applications.
- Nominal sensing distance:
- 900mm
- Thermal drift of Sr:
- ±2%
- Repeat Accuracy:
- 0,50%
- Beam angle:
- 10° ± 2°
- Resolution:
- ?3mm
- Sensitivity adjustment:
- Teach-in button
- Hysteresis:
- 1%
- thermal compensation:
- Yes
- Minimum sensing distance (blind zone):
- 100mm
- Linearity error:
- 1%
- Function Principle:
- Diffuse reflection
- Output type:
- NPN + 0...10V
- Output Function:
- NO/NC + positive/negative slope
- Switching frequency:
- 4Hz
- Response time:
- 500ms
- Operating Voltage:
- 10 - 30Vdc
- No-Load supply current:
- ?50mA
- Load current:
- 100mA
- Leakage current:
- 10?A @ 30Vcc
- Output voltage drop:
- 2,2Vmax. @ IL=100 mA
- Max ripple content:
- 5%
- LED indicators:
- green: echo - yellow: output
- Time delay before availability:
- ?300ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Impulsive Overvoltage Protection:
- Yes
- Minimum load resistence:
- 3k?
- Weight:
- 70g
- Housing Material:
- PBT housing
- Connections:
- M12 Plug
- Tightening torque:
- 1Nm
- Storage temperature:
- - 35°C + 80° C without freeze
- Transducer Frequency:
- 300kHz
- Diameter/Dimension:
- M18
- Approvals:
- CE cULus
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- IEC EN60947-5-2 / 7.4
- Degree of protection:
- IP67
- Supplied Accessories:
- 2 nuts M18x1, 2 washers Ø 18
- Mechanical Protection:
- IP67
