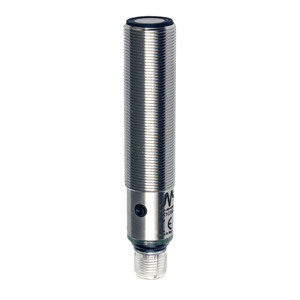

The Datasensing UK1C/GM-1ESY Sensors are advanced ultrasonic sensors designed for precision and reliability. Featuring an M18 NPN adjustable hysteresis with a standard window, these sensors offer both NO and NC output functions, making them versatile for various applications. With a nominal sensing distance of 900mm and a minimum sensing distance of 100mm, they provide accurate detection within a wide range. The sensors are equipped with a teach-in button for easy sensitivity adjustment and a multifunction LED indicator that displays output type, adjustment procedures, and more.
Constructed with AISI316L stainless steel housing, these sensors are built to withstand harsh environments, offering IP67 mechanical protection. They are designed to operate efficiently within a temperature range of -20°C to +70°C and can be stored safely between -35°C and +80°C without freezing. The sensors feature a diffuse reflection function principle, a beam angle of 10° ± 2°, and a resolution of ?3mm, ensuring precise performance.
With a switching frequency of 4Hz and a response time of 500ms, the Datasensing UK1C/GM-1ESY Sensors are ideal for applications requiring quick and reliable sensing. They are equipped with short-circuit, reverse polarity, and impulsive overvoltage protection, ensuring durability and safety. The sensors are compatible with a 10 - 30Vdc operating voltage and have a no-load supply current of ?50mA.
These sensors come with an M12 plug connection and are supplied with two M18x1 nuts and two Ø 18 washers for easy installation. Approved by CE and cULus, they meet EMC compatibility standards IEC 60947-5-2 and are resistant to shocks and vibrations as per IEC EN60947-5-2 / 7.4. The Datasensing UK1C/GM-1ESY Sensors are the perfect choice for those seeking high-performance sensing solutions with robust protection and adaptability.
- Nominal sensing distance:
- 900mm
- Thermal drift of Sr:
- ±2%
- Repeat Accuracy:
- 0,50%
- Beam angle:
- 10° ± 2°
- Resolution:
- ?3mm
- Sensitivity adjustment:
- Teach-in button
- Hysteresis:
- 1%
- thermal compensation:
- Yes
- Minimum sensing distance (blind zone):
- 100mm
- Linearity error:
- 1%
- Function Principle:
- Diffuse reflection
- Output type:
- 2x NPN
- Output Function:
- NO/NC multifunctions
- Switching frequency:
- 4Hz
- Response time:
- 500ms
- Operating Voltage:
- 10 - 30Vdc
- No-Load supply current:
- ?50mA
- Load current:
- 100mA
- Leakage current:
- 10?A @ 30Vcc
- Output voltage drop:
- 2,2Vmax. @ IL=100 mA
- Max ripple content:
- 5%
- LED indicators:
- green: echo - yellow: output
- Time delay before availability:
- ?300ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Impulsive Overvoltage Protection:
- Yes
- Weight:
- 100g
- Housing Material:
- stainless steel AISI 316L
- Connections:
- M12 Plug
- Tightening torque:
- 50Nm
- Storage temperature:
- - 35°C + 80° C without freeze
- Transducer Frequency:
- 300kHz
- Diameter/Dimension:
- M18
- Approvals:
- CE cULus
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- IEC EN60947-5-2 / 7.4
- Degree of protection:
- IP67
- Supplied Accessories:
- 2 nuts M18x1, 2 washers Ø 18
- Mechanical Protection:
- IP67
