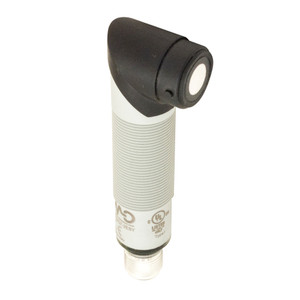

The Datasensing UK1C/GM-2ESY Sensors are advanced ultrasonic sensors designed for precision and reliability. Featuring an M18 NPN adjustable hysteresis with a standard window and NO+NC output functions, these sensors offer a nominal sensing distance of 900mm and a minimum sensing distance of 100mm, ensuring accurate detection within a range of 100-900mm. The sensors are equipped with a teach-in button for easy sensitivity adjustment and a multifunction LED indicator that displays output type, adjustment procedures, and more. With a beam angle of 10° ± 2°, a resolution of ?3mm, and a repeat accuracy of 0.50%, these sensors are ideal for applications requiring high precision.
The UK1C/GM-2ESY models come with digital programmable outputs and options for current or voltage analogue outputs, making them versatile for various industrial applications. The adjustable hysteresis function and programmable double digital outputs are specifically designed for level detection. The sensors are housed in durable PBT material, providing IP67 mechanical protection, and are equipped with short-circuit, reverse polarity, and impulsive overvoltage protection for enhanced safety and reliability.
Operating within a temperature range of -20°C to +70°C, these sensors are suitable for diverse environments. They feature a response time of 500ms, a switching frequency of 4Hz, and are compatible with operating voltages between 10 - 30Vdc. The sensors are CE cULus approved and comply with EMC compatibility standards IEC 60947-5-2, ensuring they meet high-quality and safety standards. Supplied with two nuts and washers, the Datasensing UK1C/GM-2ESY Sensors are ready for immediate installation and use.
- Nominal sensing distance:
- 900mm
- Thermal drift of Sr:
- ±2%
- Repeat Accuracy:
- 0,50%
- Beam angle:
- 10° ± 2°
- Resolution:
- ?3mm
- Sensitivity adjustment:
- Teach-in button
- Hysteresis:
- 1%
- thermal compensation:
- Yes
- Minimum sensing distance (blind zone):
- 100mm
- Linearity error:
- 1%
- Function Principle:
- Diffuse reflection
- Output type:
- 2x NPN
- Output Function:
- NO/NC multifunctions
- Switching frequency:
- 4Hz
- Response time:
- 500ms
- Operating Voltage:
- 10 - 30Vdc
- No-Load supply current:
- ?50mA
- Load current:
- 100mA
- Leakage current:
- 10?A @ 30Vcc
- Output voltage drop:
- 2,2Vmax. @ IL=100 mA
- Max ripple content:
- 5%
- LED indicators:
- green: echo - yellow: output
- Time delay before availability:
- ?300ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Impulsive Overvoltage Protection:
- Yes
- Weight:
- 75g
- Housing Material:
- PBT housing
- Connections:
- M12 Plug
- Tightening torque:
- 1Nm
- Storage temperature:
- - 35°C + 80° C without freeze
- Transducer Frequency:
- 300kHz
- Diameter/Dimension:
- M18
- Approvals:
- CE cULus
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- IEC EN60947-5-2 / 7.4
- Degree of protection:
- IP67
- Supplied Accessories:
- 2 nuts M18x1, 2 washers Ø 18
- Mechanical Protection:
- IP67
