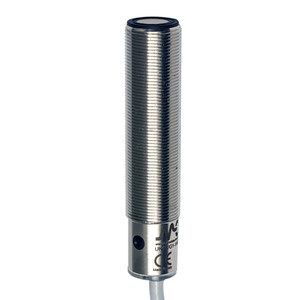

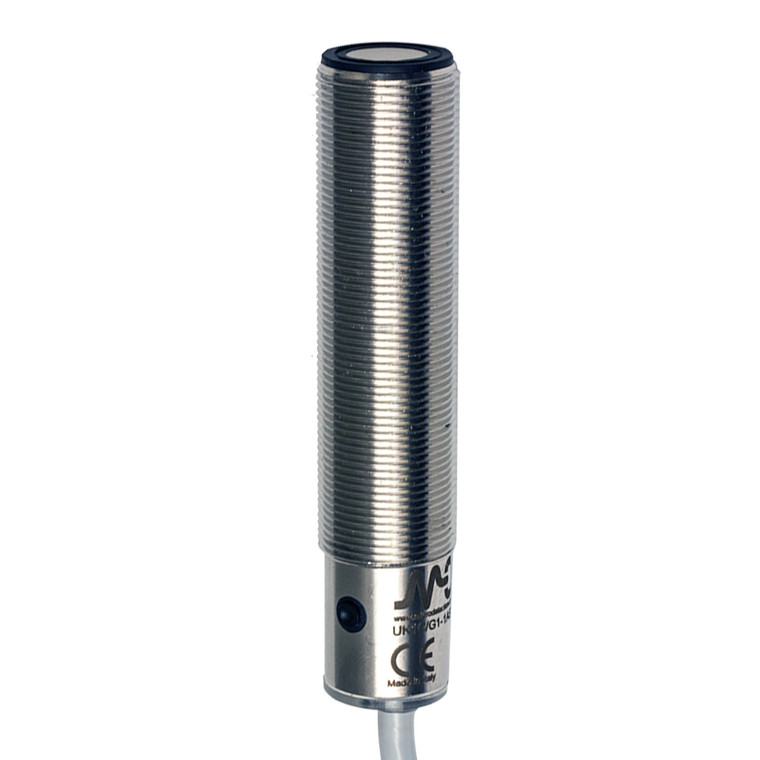

Datasensing UK1C/GN-1ASY Sensors

The Datasensing UK1C/GN-1ASY Sensors are designed for precision and reliability, featuring a nominal sensing distance of 900mm and a thermal drift of Sr at ±2%. With a repeat accuracy of 0.50% and a beam angle of 10° ± 2°, these sensors ensure high-resolution detection with a sensitivity adjustment via a convenient Teach-in button. The adjustable hysteresis function, with a 1% margin, allows for precise level detection, while the diffuse reflection principle enhances versatility in various applications. Equipped with a multifunction LED indicator, these sensors provide clear feedback on output type, adjustment procedures, and NO/NC selection, along with reverse analog output slope indication. The robust stainless steel AISI 316L housing ensures durability, complemented by IP67 mechanical protection for reliable performance in harsh environments. Operating within a voltage range of 10 - 30Vdc, the sensors feature a no-load supply current of ?50mA and a load current of 100mA, with a leakage current of 10?A at 30Vcc. The output voltage drop is maintained at a maximum of 2.2V at IL=100 mA, ensuring efficient power management. The sensors also include short-circuit, reverse polarity, and impulsive overvoltage protection for enhanced safety. With a switching frequency of 4Hz and a response time of 500ms, these sensors are designed for fast and accurate performance. The operating temperature range of -20°C to +70°C and storage temperature range of -35°C to +80°C without freeze ensure adaptability to various environmental conditions. The sensors come with supplied accessories, including 2 nuts M18x1 and 2 washers Ø 18, for easy installation. CE cULus approved and EMC compatible with IEC 60947-5-2 standards, these sensors are a reliable choice for industrial applications.
