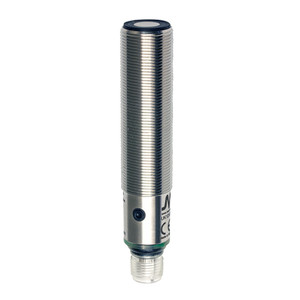

Datasensing UK1D/G4-1ESY Sensors
Datasensing
$446.18
The Datasensing UK1D/G4-1ESY Sensors are designed for precision and reliability in various industrial applications. These sensors feature an M18 NPN output combined with a 4..20mA current output, ensuring versatile integration into existing systems. Constructed from durable AISI316L stainless steel, they offer robust performance with a nominal sensing distance of 1600mm and a beam angle of 15° ± 2°. The sensors are equipped with a Teach-in button for easy sensitivity adjustment and an adjustable hysteresis function, making them ideal for level-specific applications.
With a response time of 500ms and a switching frequency of 3Hz, these sensors provide quick and accurate readings. They are protected against short-circuits, reverse polarity, and impulsive overvoltage, ensuring long-lasting operation. The multifunction LED indicator aids in setup and monitoring, displaying output type, adjustment procedures, and more.
The UK1D/G4-1ESY Sensors are designed to withstand harsh environments, with an operating temperature range of -20°C to +70°C and an IP67 degree of protection. They are EMC compatible and approved by CE and cULus standards, ensuring compliance with international safety regulations. Supplied with two M18x1 nuts and washers, these sensors are ready for immediate installation.
- Nominal sensing distance:
- 1600mm
- Thermal drift of Sr:
- ±2%
- Repeat Accuracy:
- 0,50%
- Beam angle:
- 15° ± 2°
- Resolution:
- ?3mm
- Sensitivity adjustment:
- Teach-in button
- Hysteresis:
- 1%
- thermal compensation:
- Yes
- Minimum sensing distance (blind zone):
- 150mm
- Linearity error:
- 1%
- Function Principle:
- Diffuse reflection
- Output type:
- NPN + 4...20mA
- Output Function:
- NO/NC + positive/negative slope
- Switching frequency:
- 3Hz
- Response time:
- 500ms
- Operating Voltage:
- 10 - 30Vdc
- No-Load supply current:
- ?50mA
- Load current:
- 100mA
- Leakage current:
- 10?A @ 30Vcc
- Output voltage drop:
- 2,2Vmax. @ IL=100 mA
- Max ripple content:
- 5%
- LED indicators:
- green: echo - yellow: output
- Time delay before availability:
- ?300ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Impulsive Overvoltage Protection:
- Yes
- Weight:
- 100g
- Housing Material:
- stainless steel AISI 316L
- Connections:
- M12 Plug
- Tightening torque:
- 50Nm
- Storage temperature:
- - 35°C + 80° C without freeze
- Transducer Frequency:
- 230kHz
- Diameter/Dimension:
- M18
- Approvals:
- CE cULus
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- IEC EN60947-5-2 / 7.4
- Degree of protection:
- IP67
- Supplied Accessories:
- 2 nuts M18x1, 2 washers Ø 18
- Mechanical Protection:
- IP67
