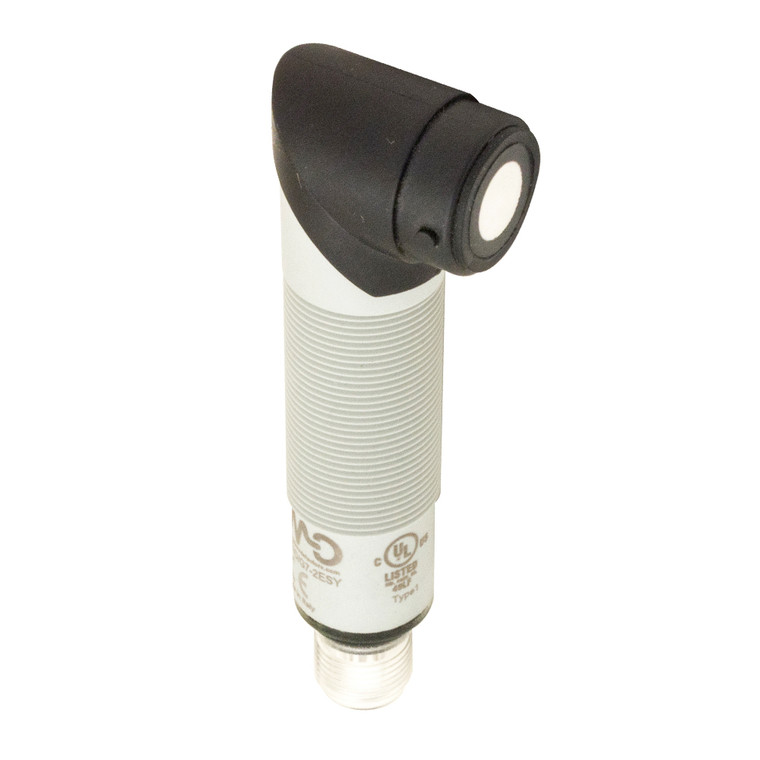

Datasensing UK1D/G4-2ESY Sensors
Datasensing
$437.21
The Datasensing UK1D/G4-2ESY Sensors are advanced ultrasonic sensors designed for precision and reliability. Featuring an M18 analog design, these sensors offer a 4-20 mA output with NPN NO/NC functionality, suitable for a wide range of applications. With a nominal sensing distance of 1600mm and a minimum sensing distance of 150mm, they provide accurate detection within a 150-1600 mm range. The sensors are equipped with a teach-in button for easy sensitivity adjustment and a multifunction LED indicator for clear status updates. Constructed with a durable PBT housing, they are designed to withstand harsh environments, offering IP67 protection and operating temperatures from -20°C to +70°C. The sensors also include short-circuit, reverse polarity, and impulsive overvoltage protection, ensuring reliable performance. With a beam angle of 15° ± 2° and a resolution of ?3mm, these sensors are ideal for applications requiring precise measurement and control. The M12 connection and supplied accessories, including nuts and washers, facilitate easy installation. Approved by CE and cULus, the Datasensing UK1D/G4-2ESY Sensors are a dependable choice for industrial sensing needs.
- Nominal sensing distance:
- 1600mm
- Thermal drift of Sr:
- ±2%
- Repeat Accuracy:
- 0,50%
- Beam angle:
- 15° ± 2°
- Resolution:
- ?3mm
- Sensitivity adjustment:
- Teach-in button
- Hysteresis:
- 1%
- thermal compensation:
- Yes
- Minimum sensing distance (blind zone):
- 150mm
- Linearity error:
- 1%
- Function Principle:
- Diffuse reflection
- Output type:
- NPN + 4...20mA
- Output Function:
- NO/NC + positive/negative slope
- Switching frequency:
- 3Hz
- Response time:
- 500ms
- Operating Voltage:
- 10 - 30Vdc
- No-Load supply current:
- ?50mA
- Load current:
- 100mA
- Leakage current:
- 10?A @ 30Vcc
- Output voltage drop:
- 2,2Vmax. @ IL=100 mA
- Max ripple content:
- 5%
- LED indicators:
- green: echo - yellow: output
- Time delay before availability:
- ?300ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Impulsive Overvoltage Protection:
- Yes
- Weight:
- 75g
- Housing Material:
- PBT housing
- Connections:
- M12 Plug
- Tightening torque:
- 1Nm
- Storage temperature:
- - 35°C + 80° C without freeze
- Transducer Frequency:
- 230kHz
- Diameter/Dimension:
- M18
- Approvals:
- CE cULus
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- IEC EN60947-5-2 / 7.4
- Degree of protection:
- IP67
- Supplied Accessories:
- 2 nuts M18x1, 2 washers Ø 18
- Mechanical Protection:
- IP67
