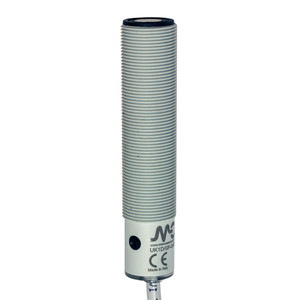

The Datasensing UK1D/G6-0ASY Sensors are advanced ultrasonic sensors designed for precision and reliability. Featuring an M18 analog design, these sensors offer a sensing range of 150-1600 mm with a 2m cable for versatile applications. Equipped with a teach-in button, they allow for easy adjustment of the working area, whether through window teach or single point teach, ensuring quick setup and operation. The multifunction LED indicator provides clear feedback on output type, adjustment procedures, and NO/NC selection, while also allowing for reverse analog output slope adjustments.
These sensors boast a nominal sensing distance of 1600mm and a thermal drift of Sr at ±2%, ensuring consistent performance. With a beam angle of 15° ± 2° and a resolution of ?3mm, they deliver precise measurements. The sensors feature a PNP + 4...20mA output type with NO/NC and positive/negative slope functions, offering flexibility in various applications. They operate within a voltage range of 10 - 30Vdc and have a no-load supply current of ?50mA.
Built with a durable PBT housing, the sensors are designed to withstand harsh environments, with an IP67 degree of protection and operating temperatures ranging from -20°C to +70°C. They include short-circuit, reverse polarity, and impulsive overvoltage protection for enhanced safety. The package comes with two M18x1 nuts and two Ø 18 washers for easy installation. Ideal for applications requiring precise level detection and distance measurement, the Datasensing UK1D/G6-0ASY Sensors are a reliable choice for industrial automation needs.
- Nominal sensing distance:
- 1600mm
- Thermal drift of Sr:
- ±2%
- Repeat Accuracy:
- 0,50%
- Beam angle:
- 15° ± 2°
- Resolution:
- ?3mm
- Sensitivity adjustment:
- Teach-in button
- Hysteresis:
- 1%
- thermal compensation:
- Yes
- Minimum sensing distance (blind zone):
- 150mm
- Linearity error:
- 1%
- Function Principle:
- Diffuse reflection
- Output type:
- PNP + 4...20mA
- Output Function:
- NO/NC + positive/negative slope
- Switching frequency:
- 3Hz
- Response time:
- 500ms
- Operating Voltage:
- 10 - 30Vdc
- No-Load supply current:
- ?50mA
- Load current:
- 100mA
- Leakage current:
- 10?A @ 30Vcc
- Output voltage drop:
- 2,2Vmax. @ IL=100 mA
- Max ripple content:
- 5%
- LED indicators:
- green: echo - yellow: output
- Time delay before availability:
- ?300ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Impulsive Overvoltage Protection:
- Yes
- Weight:
- 110g
- Housing Material:
- PBT housing
- Connections:
- 2m PVC Cable
- Tightening torque:
- 1Nm
- Storage temperature:
- - 35°C + 80° C without freeze
- Transducer Frequency:
- 230kHz
- Diameter/Dimension:
- M18
- Approvals:
- CE cULus
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- IEC EN60947-5-2 / 7.4
- Degree of protection:
- IP67
- Supplied Accessories:
- 2 nuts M18x1, 2 washers Ø 18
- Mechanical Protection:
- IP67
