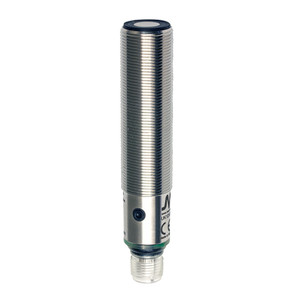

The Datasensing UK1D/G6-1ESY Sensors are high-performance ultrasonic sensors designed for precision and reliability. Featuring an M18 analog design, these sensors offer a nominal sensing distance of 1600mm with a minimum blind zone of 150mm. The sensors provide both PNP NO/NC outputs and a 4-20 mA analog output, allowing for versatile application in various industrial settings.
Equipped with a teach-in button, the sensors enable easy sensitivity adjustment and working area configuration, ensuring quick setup and operation. The adjustable hysteresis function and programmable double digital outputs make these sensors ideal for level-specific applications. A multifunction LED indicator provides clear feedback on output type, adjustment procedures, and NO/NC selection, while also indicating reverse analog output slope.
Constructed with AISI316L stainless steel housing, the sensors are built to withstand harsh environments, offering IP67 mechanical protection and compliance with CE cULus standards. They are designed to operate within a temperature range of -20°C to +70°C and are protected against short-circuits, reverse polarity, and impulsive overvoltage. With a beam angle of 15° ± 2°, a resolution of ?3mm, and a response time of 500ms, these sensors deliver precise and reliable performance.
The Datasensing UK1D/G6-1ESY Sensors come with M12 connections and are supplied with two M18x1 nuts and two Ø 18 washers for easy installation. With a robust design and advanced features, these sensors are an excellent choice for demanding industrial applications.
- Nominal sensing distance:
- 1600mm
- Thermal drift of Sr:
- ±2%
- Repeat Accuracy:
- 0,50%
- Beam angle:
- 15° ± 2°
- Resolution:
- ?3mm
- Sensitivity adjustment:
- Teach-in button
- Hysteresis:
- 1%
- thermal compensation:
- Yes
- Minimum sensing distance (blind zone):
- 150mm
- Linearity error:
- 1%
- Function Principle:
- Diffuse reflection
- Output type:
- PNP + 4...20mA
- Output Function:
- NO/NC + positive/negative slope
- Switching frequency:
- 3Hz
- Response time:
- 500ms
- Operating Voltage:
- 10 - 30Vdc
- No-Load supply current:
- ?50mA
- Load current:
- 100mA
- Leakage current:
- 10?A @ 30Vcc
- Output voltage drop:
- 2,2Vmax. @ IL=100 mA
- Max ripple content:
- 5%
- LED indicators:
- green: echo - yellow: output
- Time delay before availability:
- ?300ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Impulsive Overvoltage Protection:
- Yes
- Weight:
- 100g
- Housing Material:
- stainless steel AISI 316L
- Connections:
- M12 Plug
- Tightening torque:
- 50Nm
- Storage temperature:
- - 35°C + 80° C without freeze
- Transducer Frequency:
- 230kHz
- Diameter/Dimension:
- M18
- Approvals:
- CE cULus
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- IEC EN60947-5-2 / 7.4
- Degree of protection:
- IP67
- Supplied Accessories:
- 2 nuts M18x1, 2 washers Ø 18
- Mechanical Protection:
- IP67
