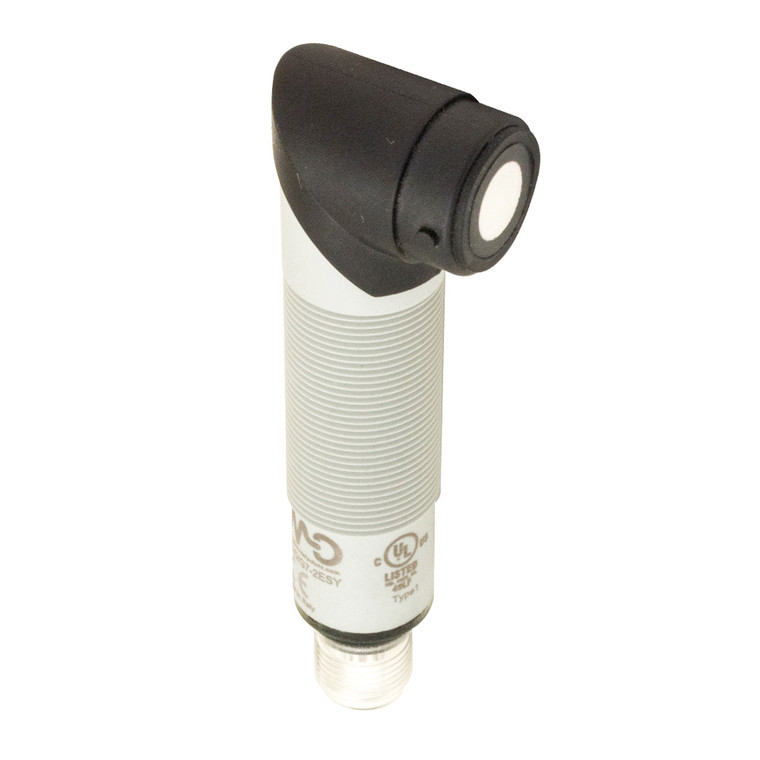

Datasensing UK1D/G7-2ESY Sensors
Datasensing
$437.21
The Datasensing UK1D/G7-2ESY Sensors are advanced ultrasonic sensors designed for precision and reliability. Featuring an M18 analog design, these sensors offer a sensing range of 150-1600 mm with a nominal sensing distance of 1600 mm. They are equipped with a 0-10 V+ PNP NO/NC output and a convenient M12 connection. The sensors include a teach-in button for easy sensitivity adjustment and a multifunction LED indicator for output type, adjustment procedure, and NO/NC selection. With a beam angle of 15° ± 2°, a resolution of ?3mm, and a repeat accuracy of 0.50%, these sensors ensure high accuracy and performance. The robust PBT housing provides IP67 protection, making them suitable for various industrial environments. Additional features include thermal compensation, short-circuit protection, reverse polarity protection, and impulsive overvoltage protection. The sensors operate within a temperature range of -20°C to +70°C and are approved by CE and cULus standards, ensuring compliance and safety. Supplied with two M18x1 nuts and two Ø 18 washers, these sensors are ready for immediate installation and use.
- Nominal sensing distance:
- 1600mm
- Thermal drift of Sr:
- ±2%
- Repeat Accuracy:
- 0,50%
- Beam angle:
- 15° ± 2°
- Resolution:
- ?3mm
- Sensitivity adjustment:
- Teach-in button
- Hysteresis:
- 1%
- thermal compensation:
- Yes
- Minimum sensing distance (blind zone):
- 150mm
- Linearity error:
- 1%
- Function Principle:
- Diffuse reflection
- Output type:
- PNP + 0...10V
- Output Function:
- NO/NC + positive/negative slope
- Switching frequency:
- 3Hz
- Response time:
- 500ms
- Operating Voltage:
- 10 - 30Vdc
- No-Load supply current:
- ?50mA
- Load current:
- 100mA
- Leakage current:
- 10?A @ 30Vcc
- Output voltage drop:
- 2,2Vmax. @ IL=100 mA
- Max ripple content:
- 5%
- LED indicators:
- green: echo - yellow: output
- Time delay before availability:
- ?300ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Impulsive Overvoltage Protection:
- Yes
- Minimum load resistence:
- 3k?
- Weight:
- 75g
- Housing Material:
- PBT housing
- Connections:
- M12 Plug
- Tightening torque:
- 1Nm
- Storage temperature:
- - 35°C + 80° C without freeze
- Transducer Frequency:
- 230kHz
- Diameter/Dimension:
- M18
- Approvals:
- CE cULus
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- IEC EN60947-5-2 / 7.4
- Degree of protection:
- IP67
- Supplied Accessories:
- 2 nuts M18x1, 2 washers Ø 18
- Mechanical Protection:
- IP67
