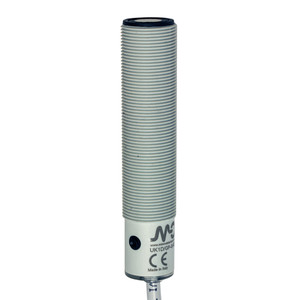

Datasensing UK1D/GW-0ASY Sensors
Datasensing
$368.65
The Datasensing UK1D/GW-0ASY Sensors are advanced ultrasonic sensors designed for precision and reliability. Featuring an M18 PNP adjustable hysteresis with a standard window and NO+NC output, these sensors offer a nominal sensing distance of 1600mm and a minimum sensing distance of 150mm. The sensors are equipped with a teach-in button for easy sensitivity adjustment and a multifunction LED indicator that displays output type, adjustment procedure, and NO/NC selection. With a beam angle of 15° ± 2°, a resolution of ?3mm, and a repeat accuracy of 0.50%, these sensors ensure accurate and consistent performance.
The sensors operate on a voltage range of 10 - 30Vdc, with a no-load supply current of ?50mA and a load current of 100mA. They feature short-circuit, reverse polarity, and impulsive overvoltage protection, ensuring durability and safety in various environments. The robust PBT housing provides mechanical protection with an IP67 rating, making them suitable for harsh conditions. The sensors come with a 2m PVC cable and are approved by CE and cULus, ensuring compliance with international standards. Ideal for applications requiring precise level detection and distance measurement, the Datasensing UK1D/GW-0ASY Sensors are a reliable choice for industrial automation needs.
- Nominal sensing distance:
- 1600mm
- Thermal drift of Sr:
- ±2%
- Repeat Accuracy:
- 0,50%
- Beam angle:
- 15° ± 2°
- Resolution:
- ?3mm
- Sensitivity adjustment:
- Teach-in button
- Hysteresis:
- 1%
- thermal compensation:
- Yes
- Minimum sensing distance (blind zone):
- 150mm
- Linearity error:
- 1%
- Function Principle:
- Diffuse reflection
- Output type:
- 2x PNP
- Output Function:
- NO/NC multifunctions
- Switching frequency:
- 3Hz
- Response time:
- 500ms
- Operating Voltage:
- 10 - 30Vdc
- No-Load supply current:
- ?50mA
- Load current:
- 100mA
- Leakage current:
- 10?A @ 30Vcc
- Output voltage drop:
- 2,2Vmax. @ IL=100 mA
- Max ripple content:
- 5%
- LED indicators:
- green: echo - yellow: output
- Time delay before availability:
- ?300ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Impulsive Overvoltage Protection:
- Yes
- Weight:
- 110g
- Housing Material:
- PBT housing
- Connections:
- 2m PVC Cable
- Tightening torque:
- 1Nm
- Storage temperature:
- - 35°C + 80° C without freeze
- Transducer Frequency:
- 230kHz
- Diameter/Dimension:
- M18
- Approvals:
- CE cULus
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- IEC EN60947-5-2 / 7.4
- Degree of protection:
- IP67
- Supplied Accessories:
- 2 nuts M18x1, 2 washers Ø 18
- Mechanical Protection:
- IP67
