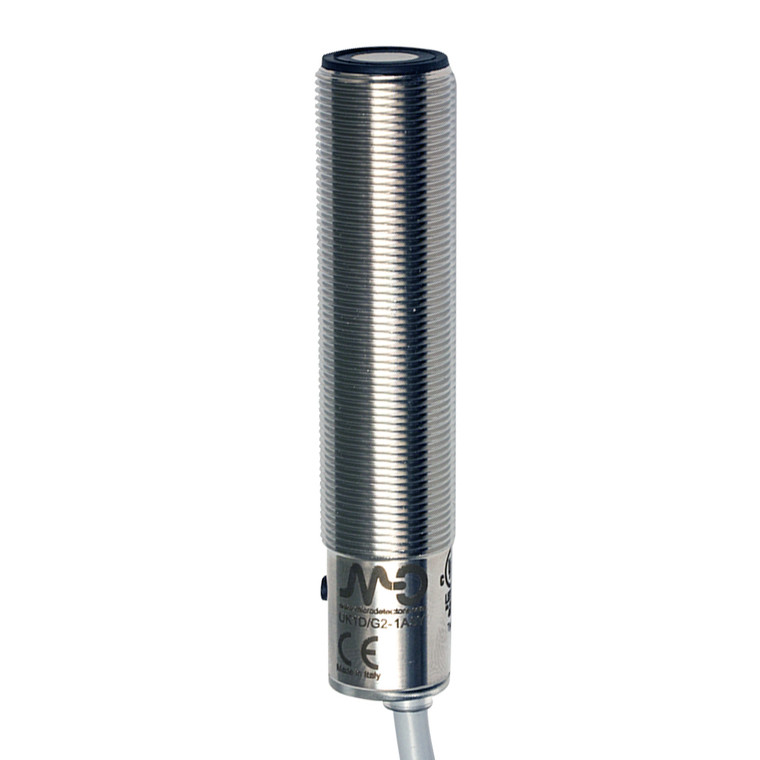

Datasensing UK1D/GW-1ASY Sensors

The Datasensing UK1D/GW-1ASY Sensors are advanced ultrasonic sensors designed for precision and reliability. Featuring an M18 PNP adjustable hysteresis with a standard window and NO+NC output, these sensors offer a sensing range of 150-1600 mm. The robust AISI316L stainless steel housing ensures durability, while the 2m cable and teach-in button facilitate easy installation and setup. These sensors are equipped with digital programmable outputs and options for current or voltage analogue outputs, making them versatile for various applications. The adjustable hysteresis function, with programmable double digital outputs, is specifically designed for level detection. The working area can be adjusted using the teach-in button, allowing for quick and efficient operation. A multifunction LED indicator provides clear feedback on output type, adjustment procedures, NO/NC selection, and reverse analog output slope. With a nominal sensing distance of 1600mm, a thermal drift of ±2%, and a repeat accuracy of 0.50%, these sensors deliver high precision. The beam angle is 15° ± 2°, and the resolution is ?3mm, ensuring accurate detection. The sensors feature a diffuse reflection function principle, with a switching frequency of 3Hz and a response time of 500ms. They operate on a voltage range of 10 - 30Vdc, with a no-load supply current of ?50mA and a load current of 100mA. The sensors are protected against short-circuits, reverse polarity, and impulsive overvoltage, ensuring reliable performance in demanding environments. With a compact design of M18 x 1 / L = 83.6mm and a weight of 170g, these sensors are easy to integrate into various systems. They are approved by CE and cULus, and comply with EMC compatibility standards IEC 60947-5-2. The sensors are also resistant to shocks and vibrations as per IEC EN60947-5-2 / 7.4, and offer a high degree of protection with an IP67 rating. Supplied with 2 nuts M18x1 and 2 washers Ø 18, these sensors are ready for immediate deployment.
