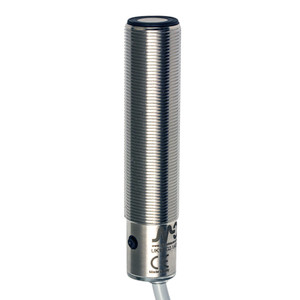

Datasensing UK1F/G1-1ASY Sensors

The Datasensing UK1F/G1-1ASY Sensors are high-performance ultrasonic sensors designed for precision and reliability. Featuring an M18 analog design, these sensors offer a sensing range of 200-2200 mm with a 0-10 V output, making them ideal for a variety of applications. The sensors are equipped with a 2m PVC cable and a convenient teach-in button for easy setup and adjustment. Constructed with AISI316L stainless steel housing, they ensure durability and resistance to harsh environments. These sensors come with digital programmable outputs and offer both current and voltage analogue outputs. The adjustable hysteresis function, along with programmable double digital outputs, is specifically designed for level detection. The working area can be adjusted using the teach-in button, allowing for quick and efficient operation. A multifunction LED indicator provides clear feedback on output type, adjustment procedures, NO/NC selection, and reverse analog output slope. With a nominal sensing distance of 2200mm and a thermal drift of ±2%, these sensors deliver repeat accuracy of 0.50% and a resolution of ?3mm. The beam angle is 14° ± 2°, and the sensors feature a diffuse reflection function principle. They operate at a voltage range of 10 - 30Vdc, with a no-load supply current of ?50mA and a load current of 100mA. The sensors are equipped with short-circuit, reverse polarity, and impulsive overvoltage protection, ensuring safe and reliable operation. The Datasensing UK1F/G1-1ASY Sensors are designed to withstand operating temperatures from -20°C to +70°C and storage temperatures from -35°C to +80°C without freezing. They are EMC compatible with IEC 60947-5-2 standards and offer mechanical protection with an IP67 degree of protection. Supplied with two nuts M18x1 and two washers Ø 18, these sensors are ready for immediate installation and use.
