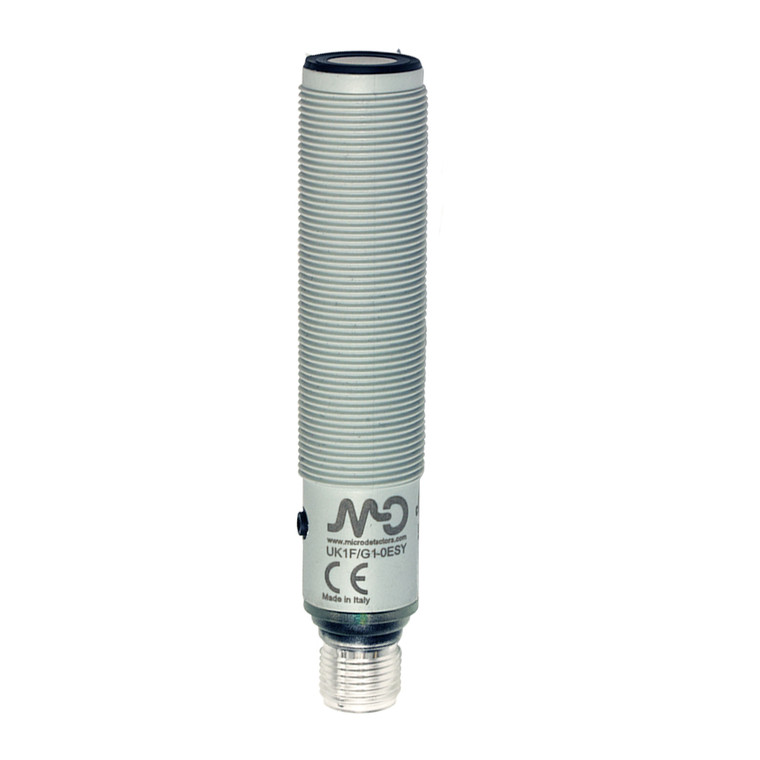

Datasensing UK1F/G6-0ESY Sensors

The Datasensing UK1F/G6-0ESY Sensors are advanced ultrasonic sensors designed for precision and reliability. Featuring an M18 analog design, these sensors offer a 4-20 mA output with PNP NO/NC configurations, suitable for a wide range of applications with a sensing distance of 200-2200 mm. The sensors are equipped with an M12 connection and a convenient teach-in button for easy setup and adjustment. Constructed with durable plastic and compliant with cULus standards, these sensors are built to withstand challenging environments. Key features include models with digital programmable outputs and options for current or voltage analogue outputs. The adjustable hysteresis function allows for programmable double digital outputs, ideal for level-specific applications. The working area can be adjusted using the teach-in button, providing flexibility and quick deployment. A multifunction LED indicator assists with output type identification, adjustment procedures, NO/NC selection, and reverse analog output slope. With a nominal sensing distance of 2200mm and a thermal drift of ±2%, these sensors ensure high accuracy with a repeat accuracy of 0.50% and a resolution of ?3mm. The sensors operate on a diffuse reflection principle and offer a PNP + 4...20mA output type with NO/NC + positive/negative slope functions. They are designed to handle a switching frequency of 2Hz and a response time of 500ms, operating efficiently within a voltage range of 10 - 30Vdc. The sensors are equipped with short-circuit, reverse polarity, and impulsive overvoltage protection, ensuring reliable performance. They are housed in a robust PBT material with an IP67 degree of protection, making them suitable for harsh conditions. The sensors come with supplied accessories, including two nuts and washers, and are approved with CE cULus certifications, ensuring compliance with international standards.
