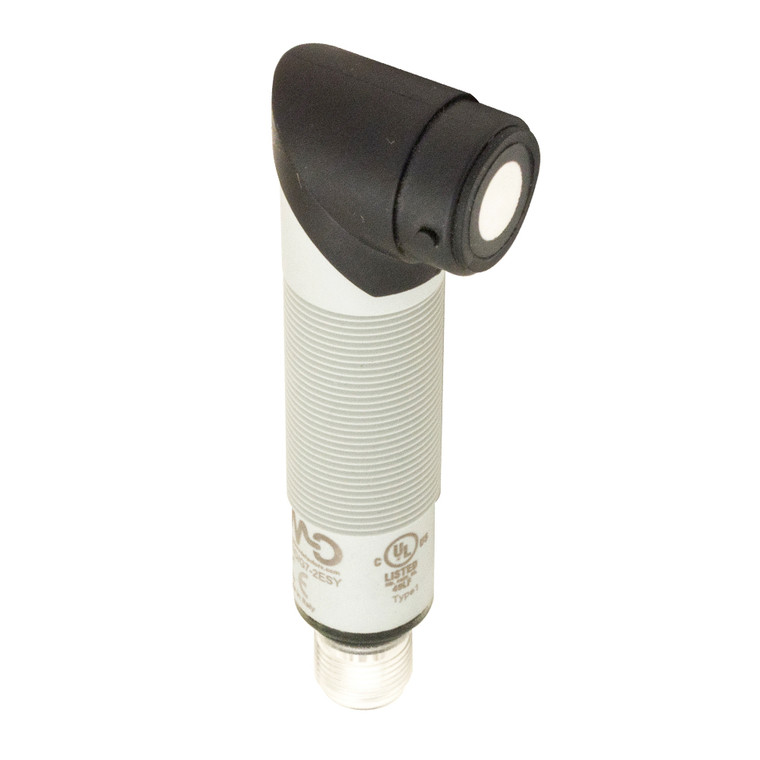

The Datasensing UK1F/G9-2ESY Sensors are advanced ultrasonic sensors designed for precision and reliability. Featuring an M18 analog design, these sensors offer a versatile 0-10 V+ NPN NO/NC output, with a sensing range of 200-2200 mm. The sensors are equipped with an M12 connection and a convenient teach-in button for easy setup and adjustment. Constructed from durable plastic, the sensors are designed with a 90° angle and are cULus approved.
These models come with digital programmable outputs and offer both current and voltage analogue outputs. The adjustable hysteresis function is ideal for applications requiring programmable double digital outputs, specifically for level detection. The working area can be adjusted using the teach-in button, allowing for quick and efficient setup.
A multifunction LED indicator provides clear feedback on output type, adjustment procedures, NO/NC selection, and reverse analog output slope. With a nominal sensing distance of 2200mm and a thermal drift of ±2%, these sensors ensure high accuracy with a repeat accuracy of 0.50% and a resolution of ?3mm. The sensors feature a diffuse reflection function principle and offer both NPN and 0...10V output types with NO/NC and positive/negative slope output functions.
Designed for robust performance, the sensors have a switching frequency of 2Hz and a response time of 500ms. They operate within a voltage range of 10 - 30Vdc, with a no-load supply current of ?50mA and a load current of 100mA. The sensors are equipped with short-circuit, reverse polarity, and impulsive overvoltage protection, ensuring reliable operation in various environments.
With a compact M18 x 1 / L = 88.3mm design and a weight of 75g, the sensors are easy to install and integrate into existing systems. The PBT housing provides excellent mechanical protection with an IP67 degree of protection, making them suitable for use in harsh conditions. The sensors are supplied with two M18x1 nuts and two Ø 18 washers for secure mounting. Operating within a temperature range of -20°C to +70°C, these sensors are built to withstand challenging environments while maintaining optimal performance.
- Nominal sensing distance:
- 2200mm
- Thermal drift of Sr:
- ±2%
- Repeat Accuracy:
- 0,50%
- Beam angle:
- 14° ± 2°
- Resolution:
- ?3mm
- Sensitivity adjustment:
- Teach-in button
- Hysteresis:
- 1%
- thermal compensation:
- Yes
- Minimum sensing distance (blind zone):
- 200mm
- Linearity error:
- 1%
- Minimum distance from background:
- 300mm
- Function Principle:
- Diffuse reflection
- Output type:
- NPN + 0...10V
- Output Function:
- NO/NC + positive/negative slope
- Switching frequency:
- 2Hz
- Response time:
- 500ms
- Operating Voltage:
- 10 - 30Vdc
- No-Load supply current:
- ?50mA
- Load current:
- 100mA
- Leakage current:
- 10?A @ 30Vcc
- Output voltage drop:
- 2,2Vmax. @ IL=100 mA
- Max ripple content:
- 5%
- LED indicators:
- green: echo - yellow: output
- Time delay before availability:
- ?300ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Impulsive Overvoltage Protection:
- Yes
- Minimum load resistence:
- 3k?
- Weight:
- 75g
- Housing Material:
- PBT housing
- Connections:
- M12 Plug
- Tightening torque:
- 1Nm
- Storage temperature:
- - 35°C + 80° C without freeze
- Transducer Frequency:
- 200kHz
- Diameter/Dimension:
- M18
- Approvals:
- CE cULus
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- IEC EN60947-5-2 / 7.4
- Degree of protection:
- IP67
- Supplied Accessories:
- 2 nuts M18x1, 2 washers Ø 18
- Mechanical Protection:
- IP67
- 2D Files:
- View
- 3D Files:
- View
- CAD Files:
- View
