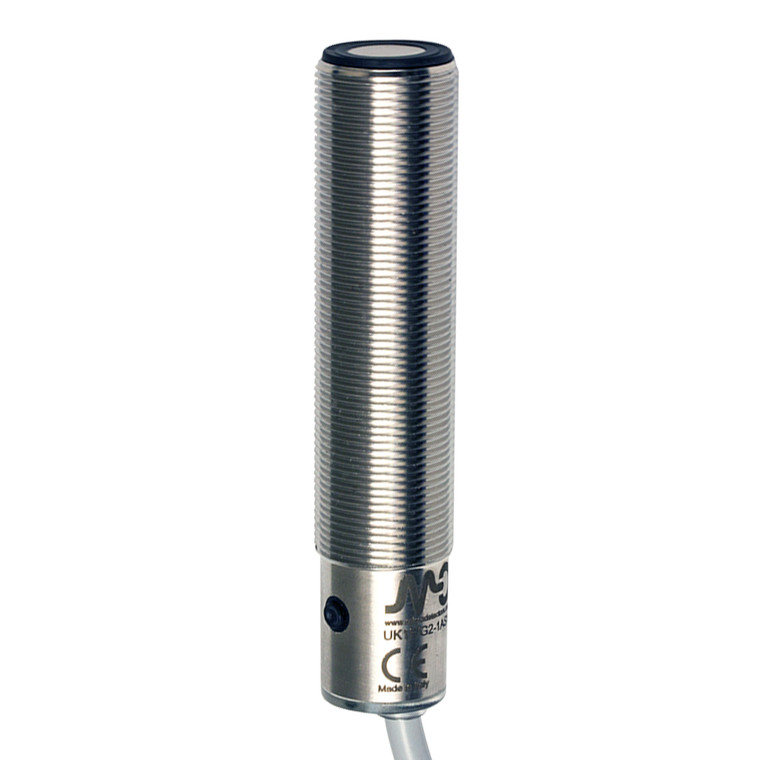

Datasensing UK1F/GM-1ASY Sensors

The Datasensing UK1F/GM-1ASY Sensors are advanced ultrasonic sensors designed for precision and reliability. Featuring an M18 NPN adjustable hysteresis and standard window with NO+NC output functions, these sensors offer a nominal sensing distance of 2200mm and a minimum sensing distance of 200mm, ensuring accurate detection within a wide range. The sensors are equipped with a teach-in button for easy sensitivity adjustment and a multifunction LED indicator that provides clear feedback on output type, adjustment procedures, and more. Constructed with AISI316L stainless steel housing, these sensors are built to withstand harsh environments, offering IP67 mechanical protection and operating temperatures ranging from -20°C to +70°C. The sensors are also equipped with short-circuit, reverse polarity, and impulsive overvoltage protection, ensuring durability and safety in various applications. With a beam angle of 14° ± 2°, a resolution of ?3mm, and a repeat accuracy of 0.50%, these sensors deliver high precision and reliability. The sensors support both digital programmable outputs and current or voltage analogue outputs, making them versatile for different applications. The adjustable hysteresis function and programmable double digital outputs are specifically designed for level detection, while the working area can be adjusted using the window teach or single point teach function. The Datasensing UK1F/GM-1ASY Sensors are CE cULus approved and comply with EMC compatibility standards IEC 60947-5-2, ensuring they meet high-quality and safety standards. Supplied with 2 nuts M18x1 and 2 washers Ø 18, these sensors are ready for immediate installation and use.
