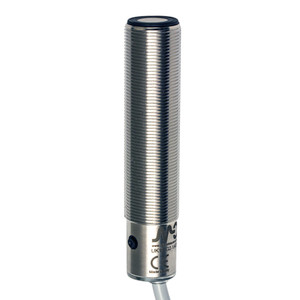

Datasensing UK1F/GN-1ASY Sensors
Datasensing
$429.06
The Datasensing UK1F/GN-1ASY Sensors are advanced ultrasonic sensors designed for precision and reliability. Featuring a robust AISI316L stainless steel housing, these sensors are built to withstand harsh environments while maintaining optimal performance. With a nominal sensing distance of 2200mm and a minimum sensing distance of 200mm, they offer a wide detection range suitable for various applications. The sensors are equipped with a teach-in button for easy sensitivity adjustment and a multifunction LED indicator that provides clear feedback on output type, adjustment procedures, and more.
These sensors support both NPN and NO/NC output functions, with a switching frequency of 2Hz and a response time of 500ms, ensuring quick and accurate detection. The adjustable hysteresis function and programmable double digital outputs make them ideal for level-specific applications. Additionally, the sensors feature thermal compensation, reverse polarity protection, and short-circuit protection, enhancing their durability and reliability.
With a beam angle of 14° ± 2° and a resolution of ?3mm, the Datasensing UK1F/GN-1ASY Sensors deliver precise measurements. They operate within a voltage range of 10 - 30Vdc and have a no-load supply current of ?50mA. The sensors are designed to handle a load current of 100mA with minimal leakage current and output voltage drop.
The sensors come with a 2m PVC cable for easy installation and are approved by CE and cULus standards, ensuring compliance with international safety and quality regulations. With an IP67 degree of protection, they are resistant to dust and water ingress, making them suitable for a wide range of industrial applications. Supplied with two nuts and washers, these sensors are ready for immediate deployment in your sensing solutions.
- Nominal sensing distance:
- 2200mm
- Thermal drift of Sr:
- ±2%
- Repeat Accuracy:
- 0,50%
- Beam angle:
- 14° ± 2°
- Resolution:
- ?3mm
- Sensitivity adjustment:
- Teach-in button
- Hysteresis:
- 1%
- thermal compensation:
- Yes
- Minimum sensing distance (blind zone):
- 200mm
- Linearity error:
- 1%
- Function Principle:
- Diffuse reflection
- Output type:
- NPN
- Output Function:
- NO/NC
- Switching frequency:
- 2Hz
- Response time:
- 500ms
- Operating Voltage:
- 10 - 30Vdc
- No-Load supply current:
- ?50mA
- Load current:
- 100mA
- Leakage current:
- 10?A @ 30Vcc
- Output voltage drop:
- 2,2Vmax. @ IL=100 mA
- Max ripple content:
- 5%
- LED indicators:
- green: echo - yellow: output
- Time delay before availability:
- ?300ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Impulsive Overvoltage Protection:
- Yes
- Weight:
- 170g
- Housing Material:
- stainless steel AISI 316L
- Connections:
- 2m PVC Cable
- Tightening torque:
- 50Nm
- Storage temperature:
- - 35°C + 80° C without freeze
- Transducer Frequency:
- 200kHz
- Diameter/Dimension:
- M18
- Approvals:
- CE cULus
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- IEC EN60947-5-2 / 7.4
- Degree of protection:
- IP67
- Supplied Accessories:
- 2 nuts M18x1, 2 washers Ø 18
- Mechanical Protection:
- IP67
- 2D Files:
- View
- 3D Files:
- View
- CAD Files:
- View
- EU Declarations:
- View
- Catalog:
- View
- User Manuals:
- View
