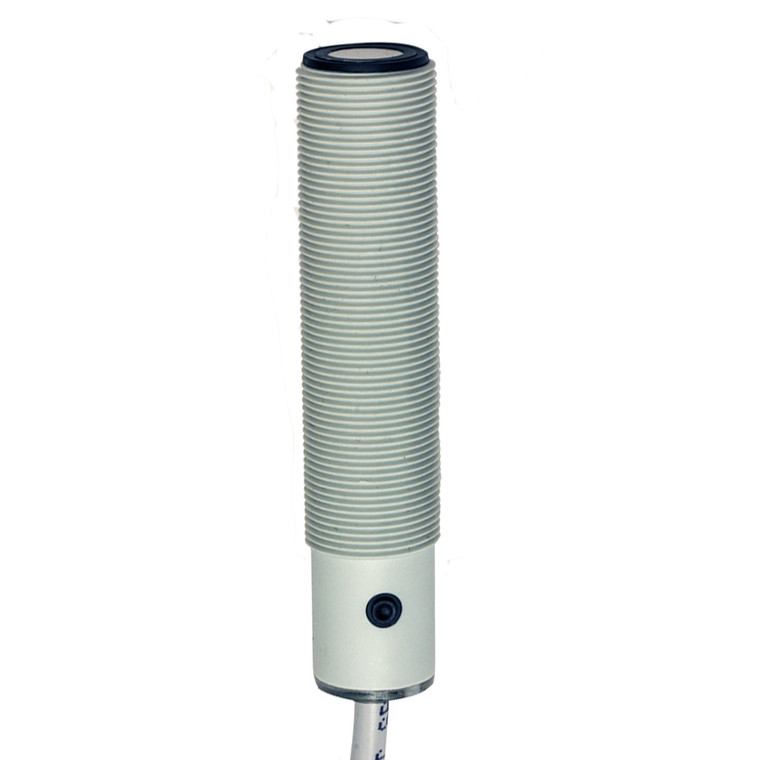

Datasensing UK1F/GP-0ASY Sensors
Datasensing
$381.49
The Datasensing UK1F/GP-0ASY Sensors are designed for precision and reliability in various industrial applications. These sensors feature a nominal sensing distance of 2200mm and utilize a diffuse reflection function principle, ensuring accurate detection with a repeat accuracy of 0.50%. The sensors are equipped with a Teach-in button for easy sensitivity adjustment and an adjustable hysteresis function, making them versatile for different operational needs.
With a robust PBT housing and IP67 mechanical protection, these sensors are built to withstand harsh environments, operating efficiently within a temperature range of -20°C to +70°C. The multifunction LED indicator provides clear status updates, including output type and adjustment procedures, while the PNP output type supports both NO and NC functions.
The UK1F/GP-0ASY Sensors offer short-circuit, reverse polarity, and impulsive overvoltage protection, ensuring safe and reliable operation. They are compatible with a wide range of voltages (10 - 30Vdc) and have a low no-load supply current of ?50mA. The sensors come with a 2m PVC cable for easy installation and are approved by CE and cULus standards, ensuring compliance with international safety and performance regulations.
Ideal for applications requiring precise level detection and distance measurement, these sensors are a dependable choice for enhancing operational efficiency and accuracy.
- Nominal sensing distance:
- 2200mm
- Thermal drift of Sr:
- ±2%
- Repeat Accuracy:
- 0,50%
- Beam angle:
- 14° ± 2°
- Resolution:
- ?3mm
- Sensitivity adjustment:
- Teach-in button
- Hysteresis:
- 1%
- thermal compensation:
- Yes
- Minimum sensing distance (blind zone):
- 200mm
- Linearity error:
- 1%
- Function Principle:
- Diffuse reflection
- Output type:
- PNP
- Output Function:
- NO/NC
- Switching frequency:
- 2Hz
- Response time:
- 500ms
- Operating Voltage:
- 10 - 30Vdc
- No-Load supply current:
- ?50mA
- Load current:
- 100mA
- Leakage current:
- 10?A @ 30Vcc
- Output voltage drop:
- 2,2Vmax. @ IL=100 mA
- Max ripple content:
- 5%
- LED indicators:
- green: echo - yellow: output
- Time delay before availability:
- ?300ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Impulsive Overvoltage Protection:
- Yes
- Weight:
- 110g
- Housing Material:
- PBT housing
- Connections:
- 2m PVC Cable
- Tightening torque:
- 1Nm
- Storage temperature:
- - 35°C + 80° C without freeze
- Transducer Frequency:
- 200kHz
- Diameter/Dimension:
- M18
- Approvals:
- CE cULus
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- IEC EN60947-5-2 / 7.4
- Degree of protection:
- IP67
- Supplied Accessories:
- 2 nuts M18x1, 2 washers Ø 18
- Mechanical Protection:
- IP67
