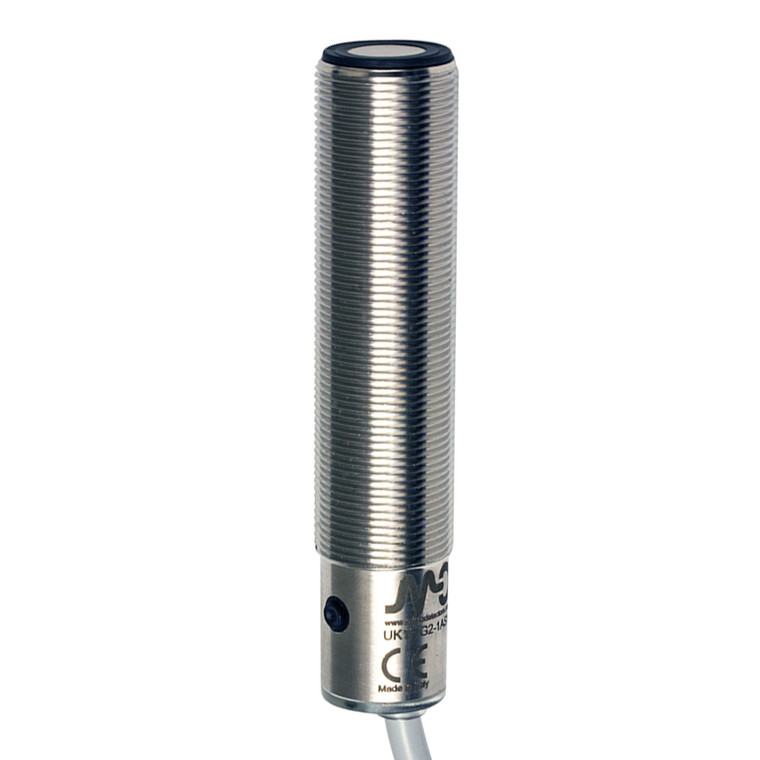

Datasensing UK1F/GW-1ASY Sensors
Datasensing
$499.96
The Datasensing UK1F/GW-1ASY Sensors are advanced ultrasonic sensors designed for precision and reliability. Featuring an M18 PNP adjustable hysteresis and standard window with NO+NC output functions, these sensors offer a nominal sensing distance of 2200mm and a minimum sensing distance of 200mm, ensuring accurate detection in various applications. The sensors are equipped with a teach-in button for easy sensitivity adjustment and a multifunction LED indicator that provides clear feedback on output type, adjustment procedures, and more.
Constructed with a robust AISI316L stainless steel housing, these sensors are built to withstand harsh environments, offering IP67 protection and resistance to shocks and vibrations as per IEC EN60947-5-2 standards. The sensors operate within a wide temperature range of -20°C to +70°C, with thermal compensation to maintain accuracy. They feature a diffuse reflection function principle, a beam angle of 14° ± 2°, and a resolution of ?3mm, making them ideal for applications requiring precise level detection and distance measurement.
With a switching frequency of 2Hz and a response time of 500ms, the Datasensing UK1F/GW-1ASY Sensors ensure quick and reliable performance. They are equipped with short-circuit, reverse polarity, and impulsive overvoltage protection, ensuring safe and stable operation. The sensors come with a 2m PVC cable for easy installation and are approved by CE and cULus, guaranteeing compliance with international safety standards. Supplied with two nuts and washers, these sensors are ready for immediate integration into your system.
- Nominal sensing distance:
- 2200mm
- Thermal drift of Sr:
- ±2%
- Repeat Accuracy:
- 0,50%
- Beam angle:
- 14° ± 2°
- Resolution:
- ?3mm
- Sensitivity adjustment:
- Teach-in button
- Hysteresis:
- 1%
- thermal compensation:
- Yes
- Minimum sensing distance (blind zone):
- 200mm
- Linearity error:
- 1%
- Function Principle:
- Diffuse reflection
- Output type:
- 2x PNP
- Output Function:
- NO/NC multifunctions
- Switching frequency:
- 2Hz
- Response time:
- 500ms
- Operating Voltage:
- 10 - 30Vdc
- No-Load supply current:
- ?50mA
- Load current:
- 100mA
- Leakage current:
- 10?A @ 30Vcc
- Output voltage drop:
- 2,2Vmax. @ IL=100 mA
- Max ripple content:
- 5%
- LED indicators:
- green: echo - yellow: output
- Time delay before availability:
- ?300ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Impulsive Overvoltage Protection:
- Yes
- Weight:
- 170g
- Housing Material:
- stainless steel AISI 316L
- Connections:
- 2m PVC Cable
- Tightening torque:
- 50Nm
- Storage temperature:
- - 35°C + 80° C without freeze
- Transducer Frequency:
- 200kHz
- Diameter/Dimension:
- M18
- Approvals:
- CE cULus
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- IEC EN60947-5-2 / 7.4
- Degree of protection:
- IP67
- Supplied Accessories:
- 2 nuts M18x1, 2 washers Ø 18
- Mechanical Protection:
- IP67
