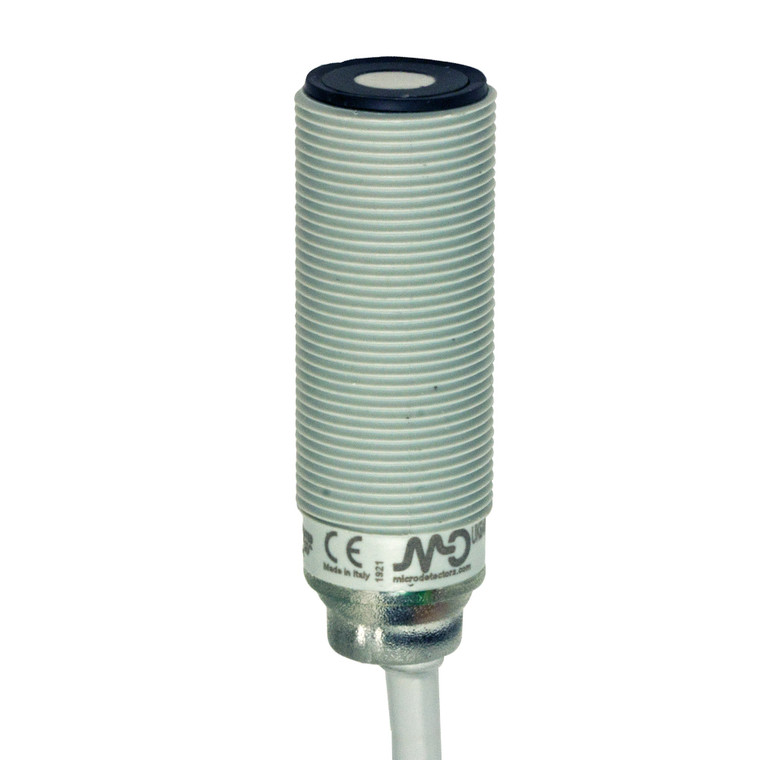

Datasensing UK6A/HP-0AUL Sensors

The Datasensing UK6A/HP-0AUL Sensors are advanced M18 diffuse reflection sensors designed for precision and reliability. With a nominal sensing distance of 300mm and a short housing, these sensors are perfect for applications requiring compact solutions. They feature both digital and analogue outputs, with a PNP output type and NO/NC output function, ensuring versatile integration into various systems. Key features include a thermal drift of Sr ?2%, repeat accuracy of 0.50%, and a beam angle of 7° ± 2°, providing consistent performance. The sensors offer a resolution of ?2mm and sensitivity adjustment via a convenient teach-in button. With a hysteresis of 1% and thermal compensation, they maintain accuracy across a range of temperatures. The sensors operate at a voltage range of 10 - 30Vdc, with a no-load supply current of ?35mA at 30V, and can handle a load current of 100mA. They are equipped with short-circuit, reverse polarity, and impulsive overvoltage protection, ensuring durability and safety. The IP67-rated PBT housing provides robust mechanical protection, making them suitable for harsh environments. Additional specifications include a switching frequency of 8Hz, a response time of 400ms, and a minimum sensing distance (blind zone) of 40mm. The sensors come with LED indicators for easy status monitoring and are supplied with two M18x1 nuts and two Ø 18 washers for secure installation. With CE cULus approvals and EMC compatibility per IEC 60947-5-2, these sensors meet high industry standards for quality and performance.
