Datasensing UK6A/HP-1EUL Sensors

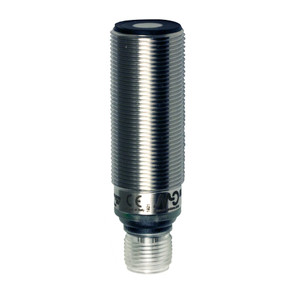

The Datasensing UK6A/HP-1EUL Sensors are advanced M18 diffuse reflection sensors designed for precision and reliability. Featuring a compact short housing, these sensors offer both digital and analogue outputs, making them versatile for various applications. With a nominal sensing distance of 300mm and a thermal drift of Sr at ?2%, they ensure consistent performance. The sensors boast a repeat accuracy of 0.50% and a beam angle of 7° ± 2°, providing precise detection capabilities. Equipped with a teach-in button for sensitivity adjustment, they offer a resolution of ?2mm and a hysteresis of 1%. The sensors are thermally compensated, ensuring stable operation across a wide temperature range of -20°C to +70°C. They feature a minimum sensing distance (blind zone) of 40mm and a linearity error of just 1%. The output type is PNP with NO/NC output functions, supporting a switching frequency of 8Hz and a response time of 400ms. Operating on a voltage range of 10 - 30Vdc, they have a no-load supply current of ?35mA at 30V and a load current of 100mA. The sensors are designed with robust protection features, including short-circuit, reverse polarity, and impulsive overvoltage protection. Constructed from durable stainless steel AISI 316L, the sensors have an IP67 degree of protection, making them suitable for harsh environments. They come with M12 plug connections and are supplied with two nuts and washers for easy installation. With CE and cULus approvals and EMC compatibility per IEC 60947-5-2, these sensors are reliable and compliant with industry standards.
