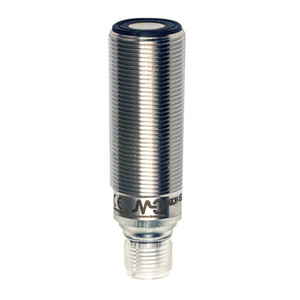

The Datasensing UK6C/H1-1EUL Sensors are high-performance M18 diffuse sensors designed for precision and reliability. With a nominal sensing distance of 800mm and a thermal drift of Sr ?2%, these sensors ensure accurate detection with a repeat accuracy of 0.50%. The beam angle of 8° ± 2° and a resolution of ?3mm make them ideal for various applications requiring precise measurements.
Equipped with both digital and analogue outputs, the sensors offer a 0...10V output type, allowing for versatile integration into different systems. The sensitivity can be easily adjusted using the Teach-in button, and the sensors feature a hysteresis of 1% and thermal compensation for consistent performance across varying temperatures.
The UK6C/H1-1EUL Sensors boast a robust stainless steel AISI 316L housing, providing durability and protection with an IP67 rating. They are designed to withstand operating temperatures from -20°C to +70°C and storage temperatures from -35°C to +80°C without freezing. The sensors are equipped with LED indicators for easy status monitoring, and they include short-circuit, reverse polarity, and impulsive overvoltage protection for enhanced safety.
With a compact design of M18 x 1 / L = 60.3mm and a weight of 80g, these sensors are easy to install using the M12 plug connection. They come with supplied accessories, including two nuts M18x1 and two washers Ø 18, ensuring a secure and stable setup. The sensors are CE cULus approved and comply with EMC compatibility standards IEC 60947-5-2, making them a reliable choice for industrial applications.
- Nominal sensing distance:
- 800mm
- Thermal drift of Sr:
- ?2%
- Repeat Accuracy:
- 0,50%
- Beam angle:
- 8° ± 2°
- Resolution:
- ?3mm
- Sensitivity adjustment:
- Teach-in button
- Hysteresis:
- 1%
- thermal compensation:
- Yes
- Minimum sensing distance (blind zone):
- 60mm
- Linearity error:
- 1%
- Function Principle:
- Diffuse reflection
- Output type:
- 0...10V
- Switching frequency:
- 5Hz
- Response time:
- 500ms
- Operating Voltage:
- 10 - 30Vdc
- No-Load supply current:
- ?35mA @Val = 30V
- Load current:
- 100mA
- Leakage current:
- 10?A @ 30Vcc
- Output voltage drop:
- 2,2Vmax. @ IL=100 mA
- Max ripple content:
- 5%
- LED indicators:
- green: echo - yellow: output
- Time delay before availability:
- ?300ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Impulsive Overvoltage Protection:
- Yes
- Minimum load resistence:
- 3k?
- Weight:
- 80g
- Housing Material:
- stainless steel AISI 316L
- Connections:
- M12 Plug
- Tightening torque:
- 50Nm
- Storage temperature:
- - 35°C + 80° C without freeze
- Transducer Frequency:
- 230kHz
- Diameter/Dimension:
- M18
- Approvals:
- CE cULus
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- IEC EN60947-5-2 / 7.4
- Degree of protection:
- IP67
- Supplied Accessories:
- 2 nuts M18x1, 2 washers Ø 18
- Mechanical Protection:
- IP67
