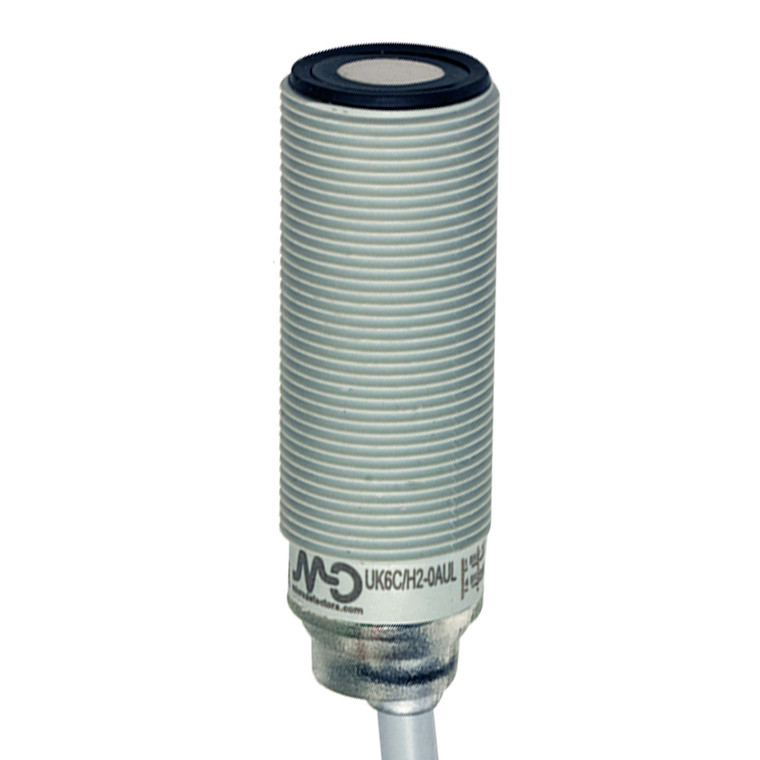

Datasensing UK6C/HN-0AUL Sensors

The Datasensing UK6C/HN-0AUL Sensors are high-performance ultrasonic sensors designed for precision and reliability. Featuring an M18 diffuse reflection function, these sensors offer a nominal sensing distance of 800mm with a minimal blind zone of 60mm. The sensors are equipped with both digital and analogue outputs, providing versatile application options. With a thermal drift of Sr ?2% and a repeat accuracy of 0.50%, these sensors ensure consistent performance even in varying temperatures, thanks to their thermal compensation feature. The sensors boast a beam angle of 8° ± 2° and a resolution of ?3mm, making them ideal for applications requiring high accuracy. Sensitivity can be easily adjusted using the teach-in button, and the sensors offer a hysteresis of 1% and a linearity error of 1%. The NPN output type supports both NO and NC output functions, with a switching frequency of 5Hz and a response time of 400ms. Operating within a voltage range of 10 - 30Vdc, these sensors have a no-load supply current of ?35mA at 30V, a load current of 100mA, and a leakage current of 10?A at 30Vcc. The output voltage drop is a maximum of 2.2V at IL=100mA, with a maximum ripple content of 5%. LED indicators provide clear status updates, with green indicating echo and yellow indicating output. Built to withstand harsh environments, the sensors feature a robust PBT housing with an IP67 degree of protection, ensuring durability against dust and water ingress. They are also equipped with short-circuit, reverse polarity, and impulsive overvoltage protection. The sensors come with a 2m PVC cable for easy installation and are supplied with two M18x1 nuts and two Ø 18 washers. With approvals from CE and cULus, and compliance with EMC compatibility standards IEC 60947-5-2, these sensors are a reliable choice for industrial applications.
